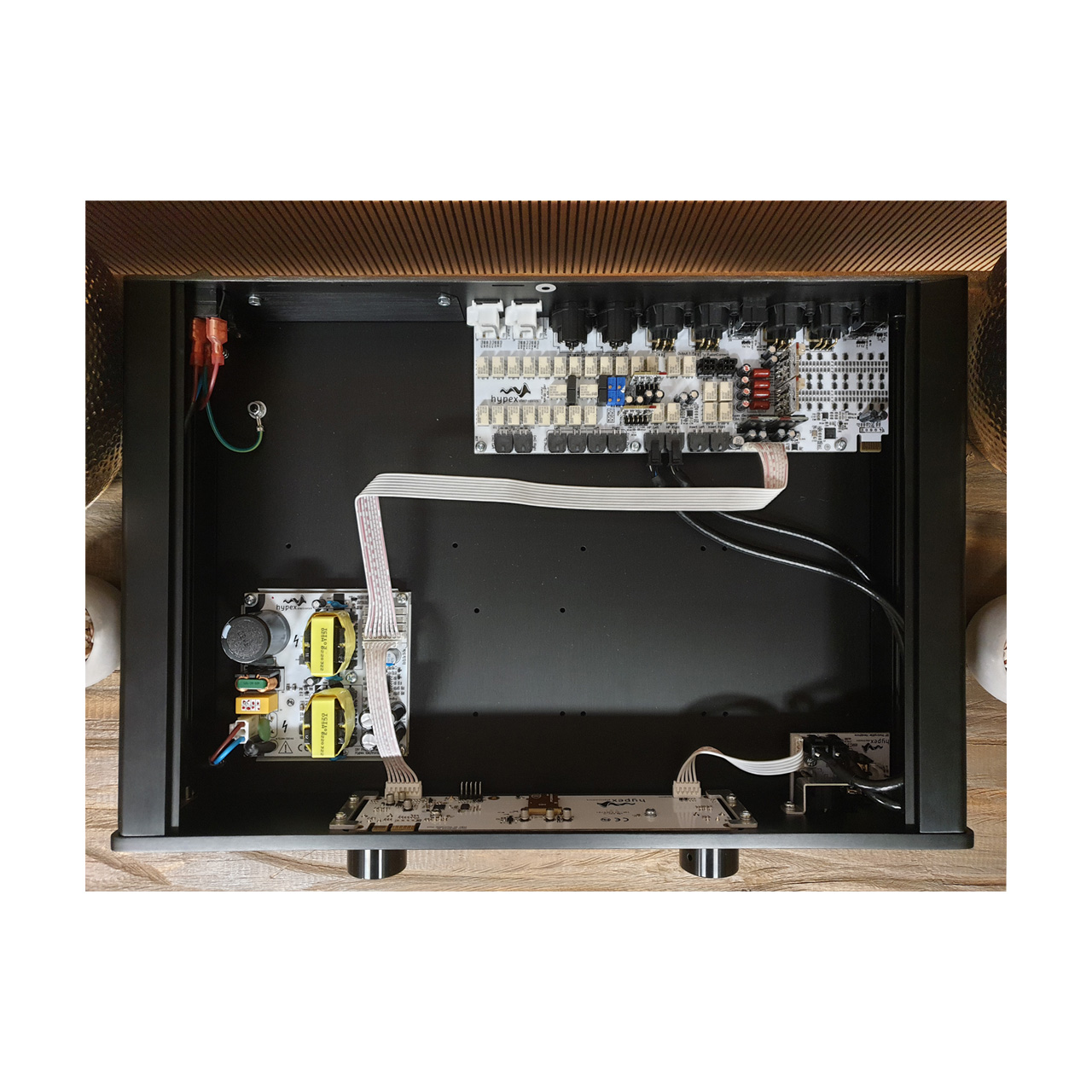

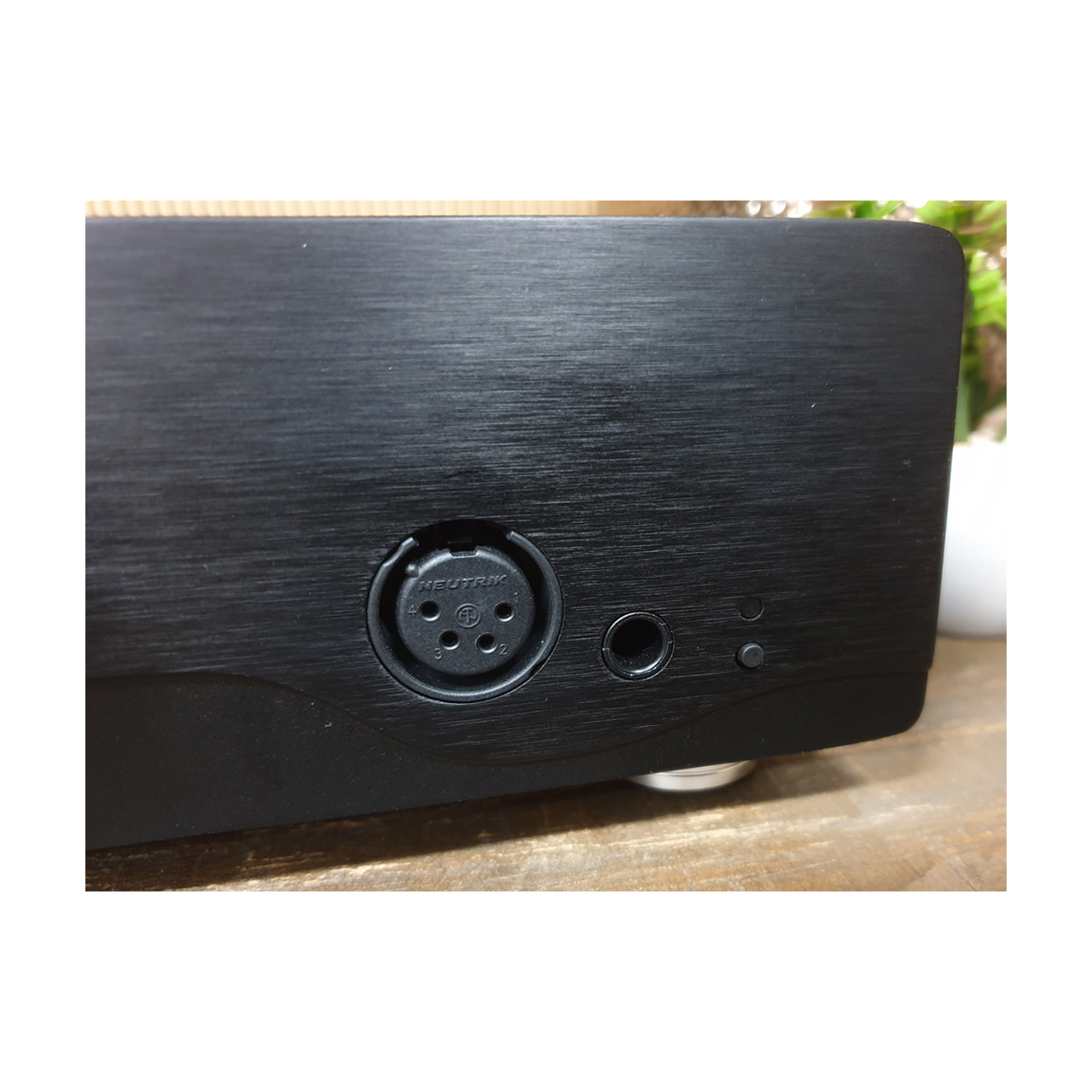

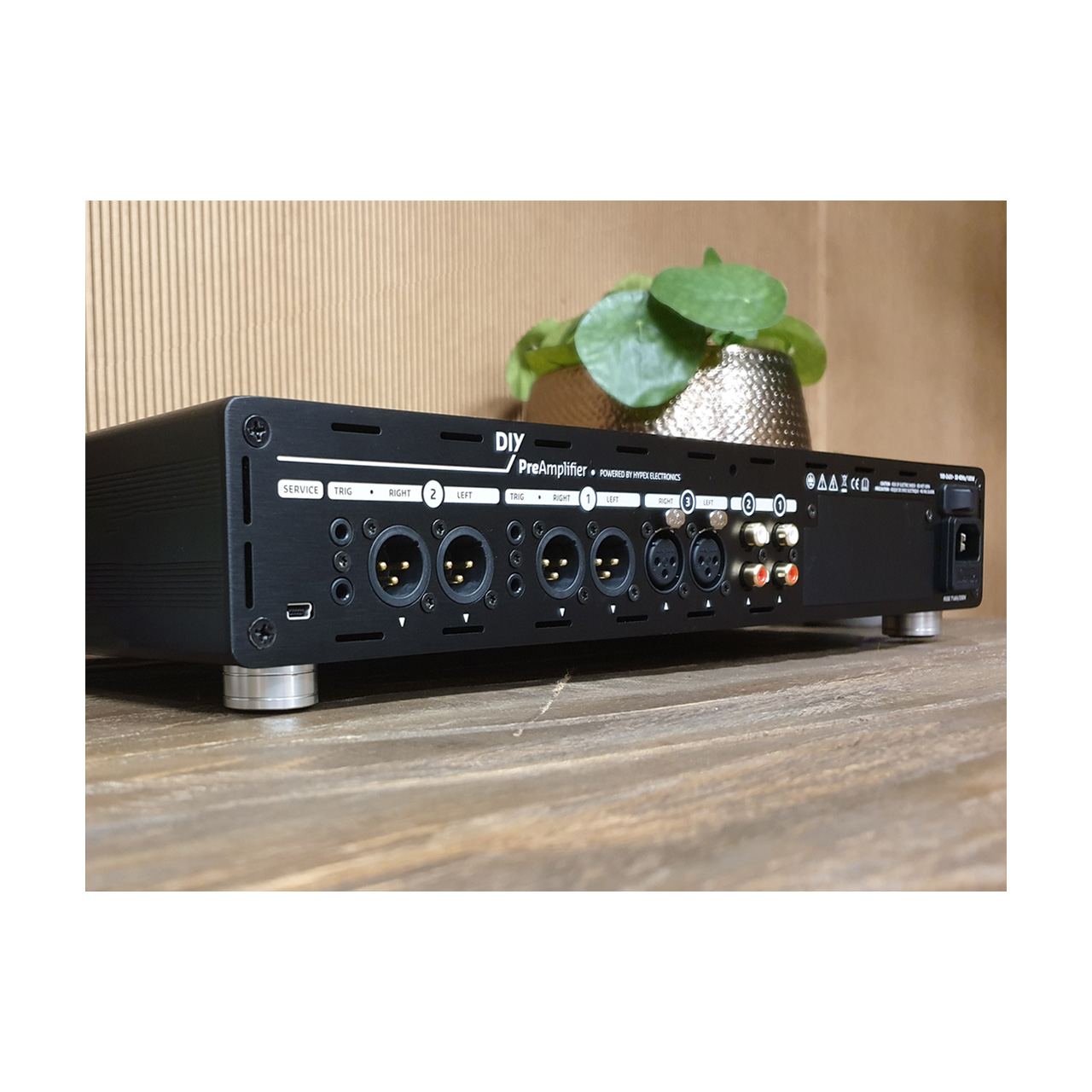

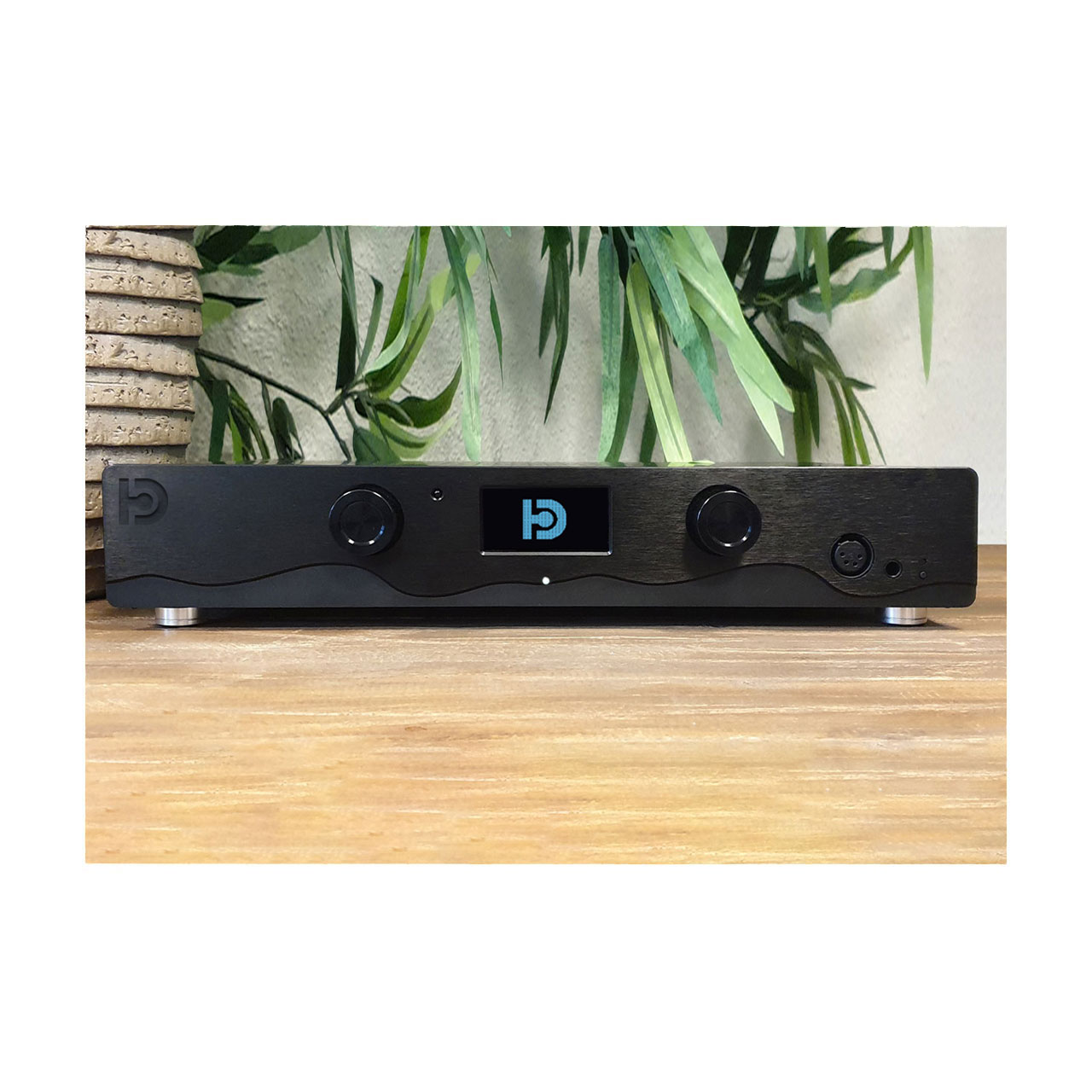

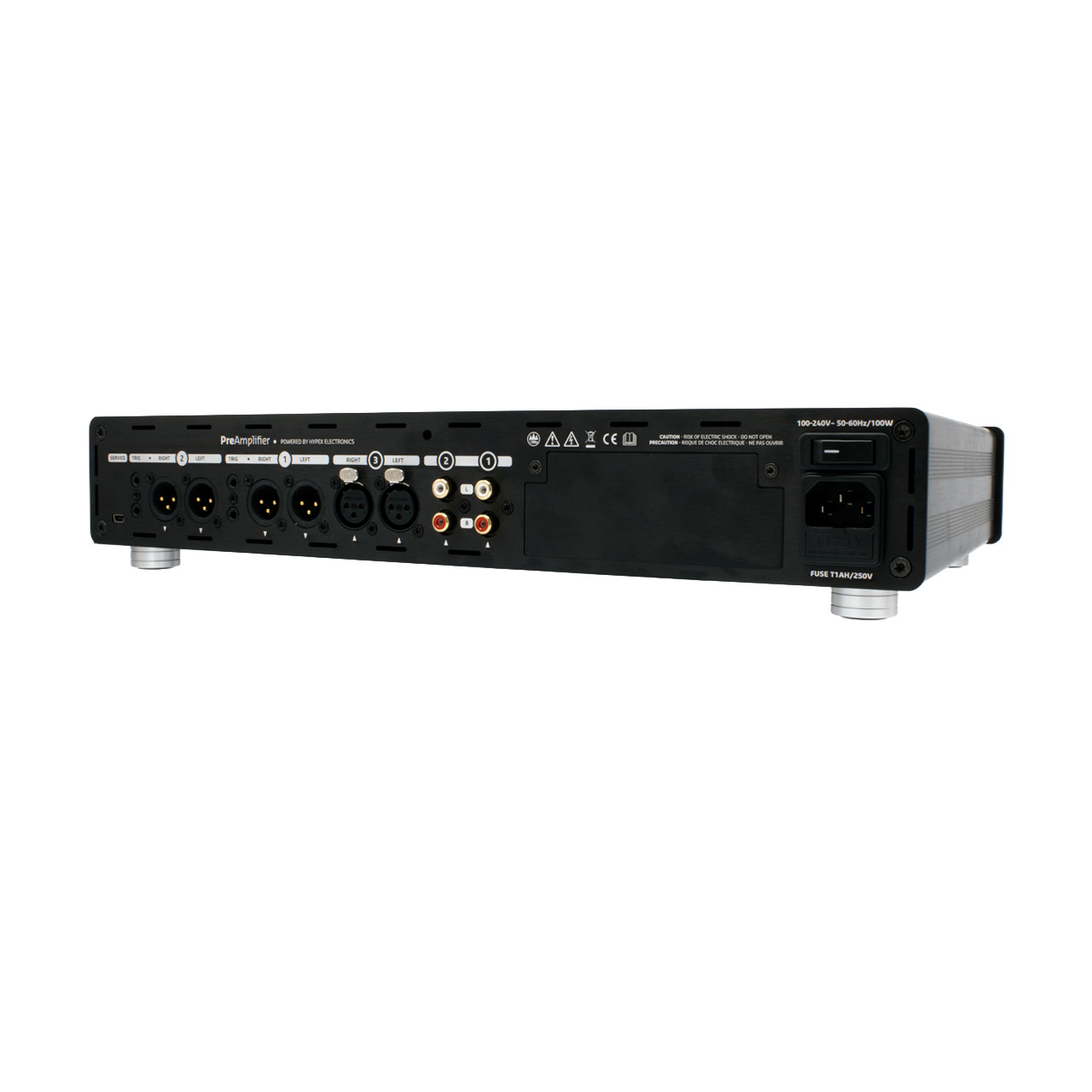

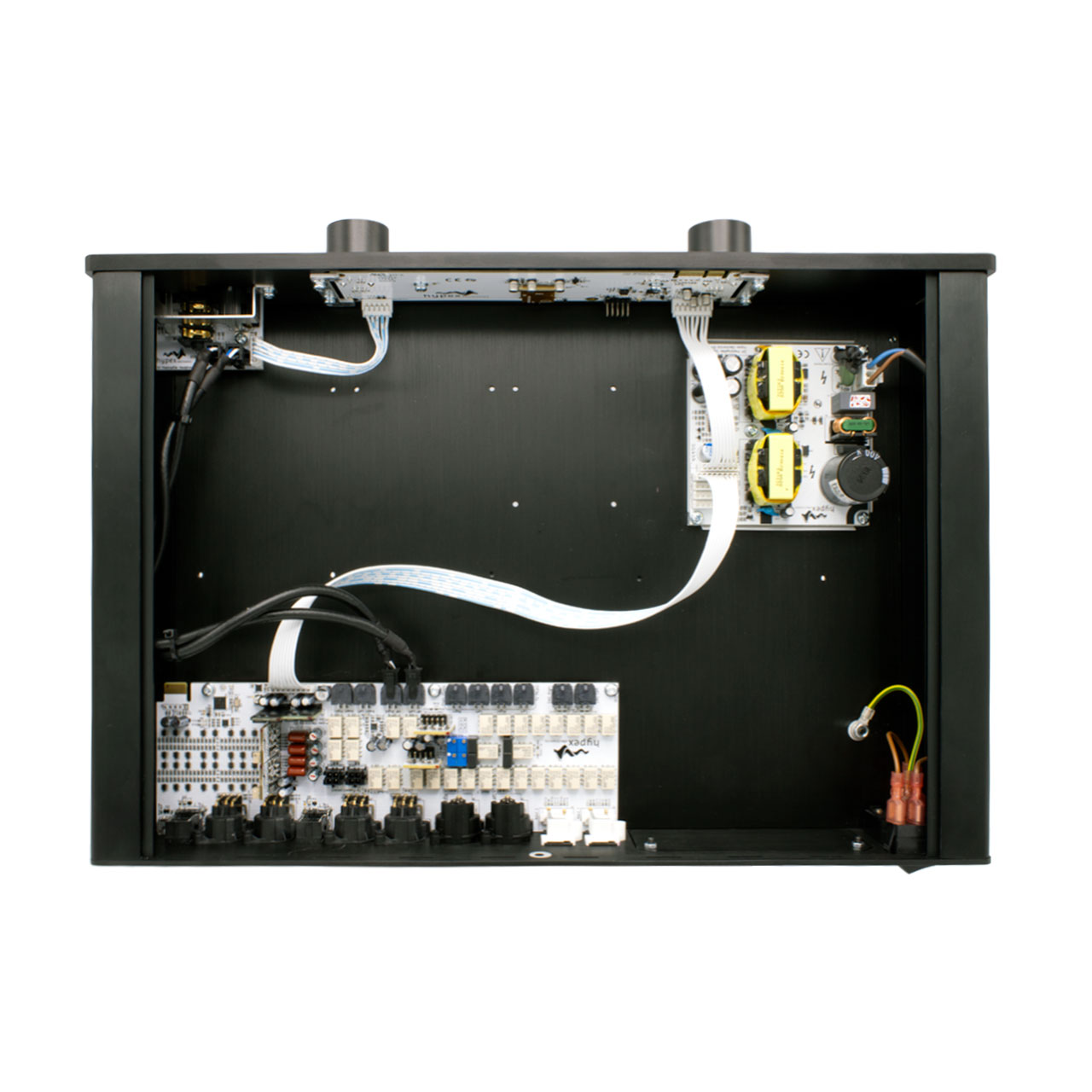

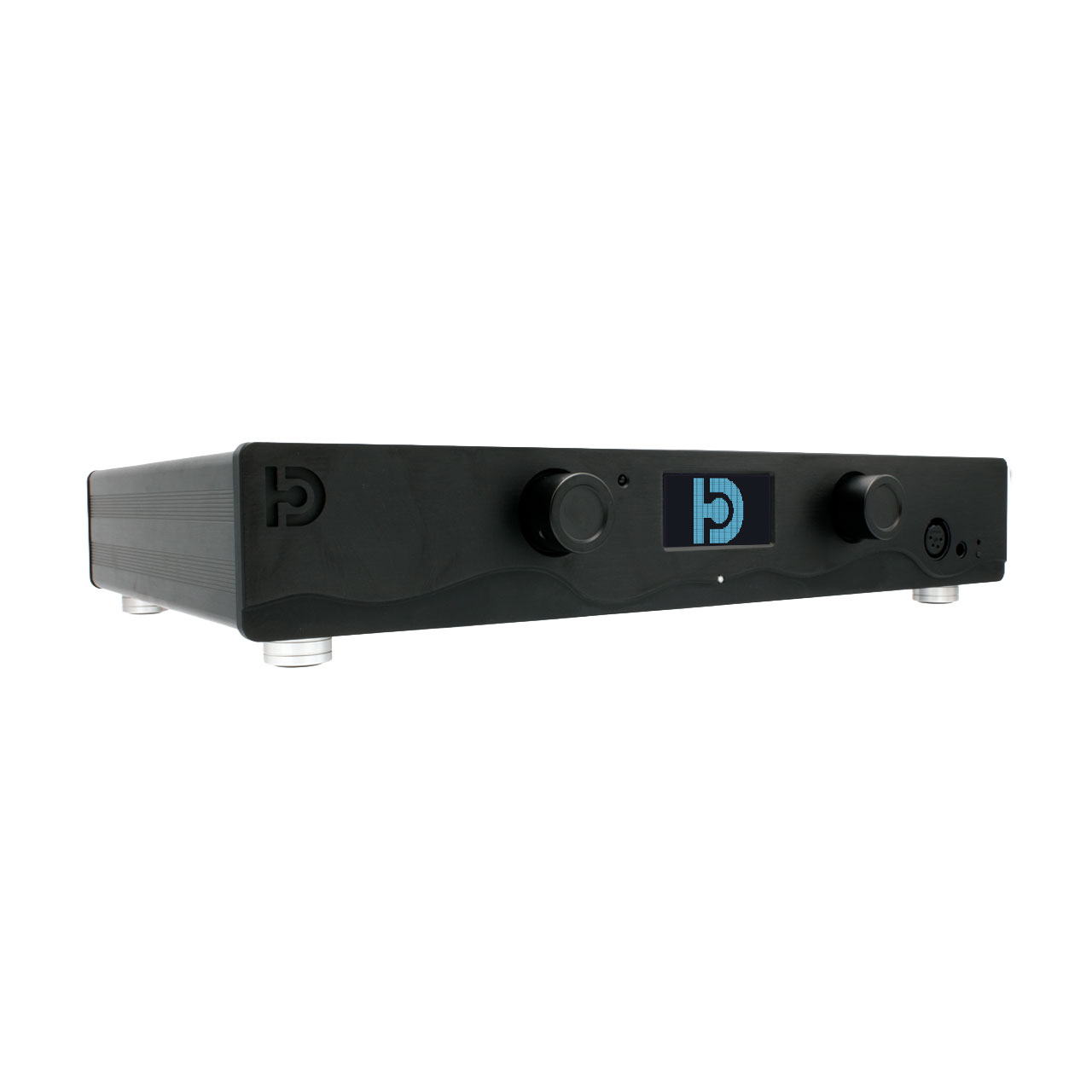

PreAmplifier Kit

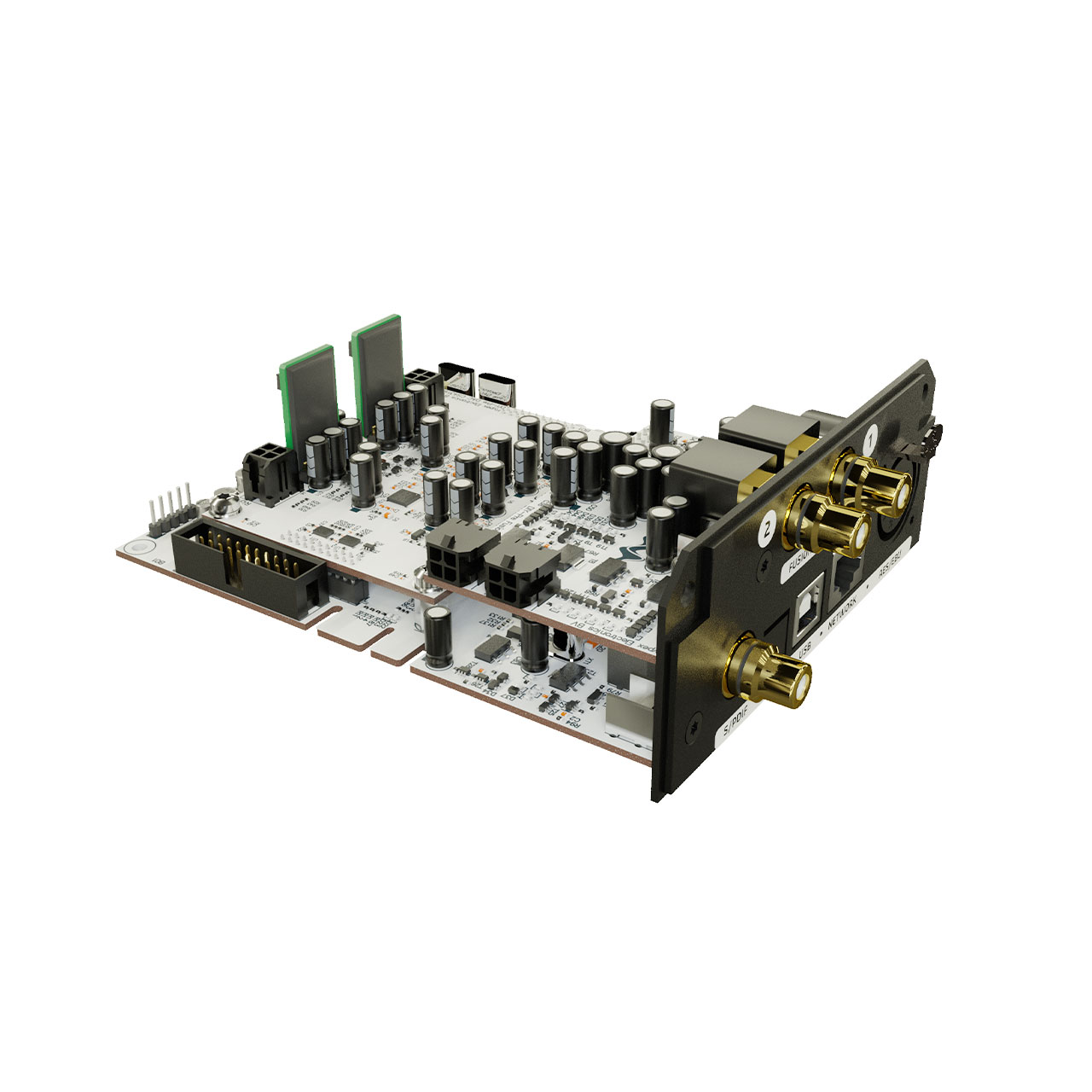

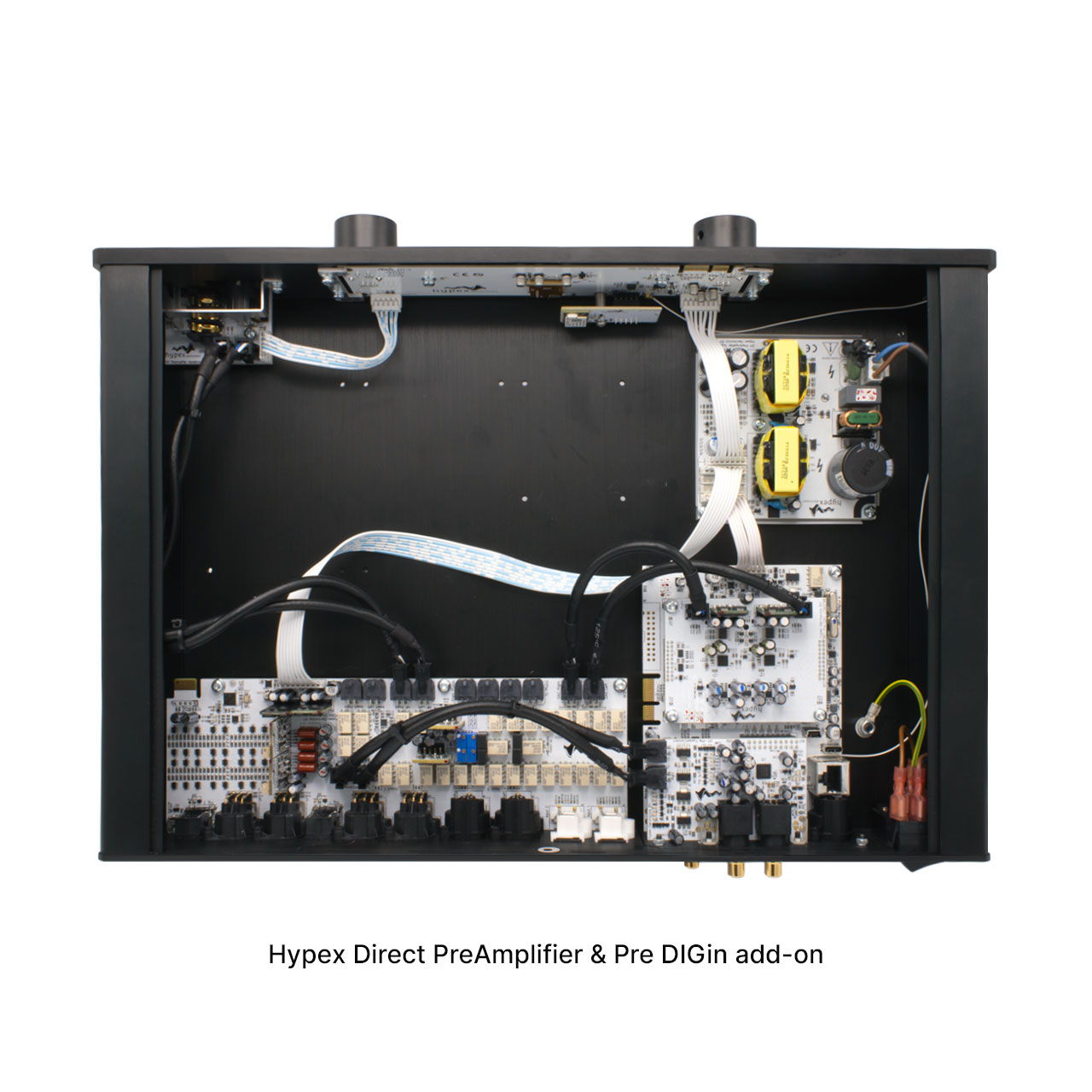

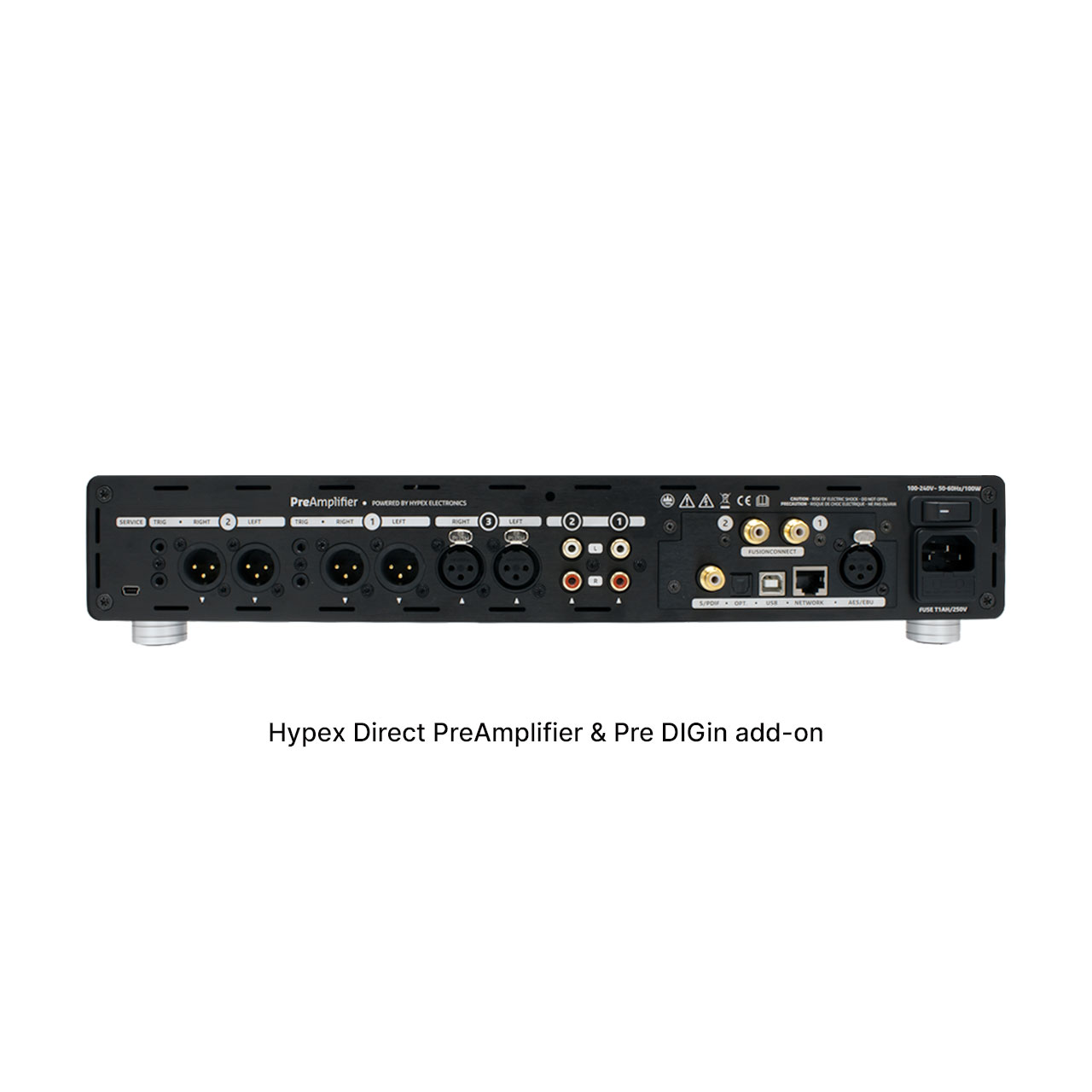

Please note: This product is only compatible with the PreAmplifier Kit   The PreDIGin add-on is designed to complete the PreAmplifier Kit. PreDIGin is the digital companion for audio enthusiasts seeking the ultimate listening experience. At the heart of the PreDIGin lies cutting-edge technology, including high-quality components such as the AK5574 ADC IC, dual CS43198 DAC ICs operating in mono mode, SRC4392 for superior sample rate conversion, and the ADSP21489 DSP for advanced signal processing capabilities. One of the standout features of the PreDIGin is its exceptional DAC audio specifications. With an output level of 14dBu, distortion rated at an impressive -117.5dB, a signal-to-noise ratio of 128.5dB, and a dynamic range of 127dB, the PreDIGin ensures pristine audio reproduction, capturing every nuance of your favorite music Versatility is another key strength of the PreDIGin, offering support for a wide range of audio formats and connectivity options. Whether you prefer traditional sources like S/PDIF, Optical, and AES/EBU up to 192kHz/24bits, or cutting-edge digital interfaces like USB type B and Network1 up to 384kHz/32bits, the PreDIGin has you covered. Additionally, Bluetooth connectivity at 48kHz/16bits provides convenient wireless streaming options. The PreDIGin add-on comes with a network option, which includes an internal USB-audio input. The user is required to purchase and install a Raspberry Pi (models 2 to 5) inside the DIY PreAmplifier. A dedicated space for this is provided. The Raspberry Pi functions as the internal processor, working together with the software of your choice. There are many software options available, each offering its own advantages and disadvantages, so it is important to carefully select the one that best suits your needs. For those looking to take their audio setup to the next level, the PreDIGin includes a FusionConnect board. This optional feature transforms your PreAmplifier Kit into the master device in a FusionAmp setup, offering seamless integration and enhanced control over your entire FusionAmp based audio system. With its exceptional performance, versatility, and innovative features, the PreDIGin sets a new standard for DIY audio enthusiasts. Elevate your listening experience and unleash the full potential of the PreAmplifier with the PreDIGin add-on. This kit contains • Mainboard with DAC module • FusionConnect board • Bluetooth module • Complete cable set • Back plate • All needed mounting materials Used Chips ADC IC AK5574 (4-to-2 mode) Used for FusionConnect DAC ICs Dual CS43198 Two CS43198 in mono mode SRC SRC4392 DSP ADSP21489 Used for DSD-decoding FusionConnect Features Inputs Selectable DAC-filters FusionConnect S/PDIF Fast, low lat. (default) Master in master/slave setup Optical Fast, linear Digital put-through analog output of pre-amplifier (via ADC) USB Slow, low latency AES/EBU Slow, linear Bluetooth Non oversampling Network Audio performance data DAC All audio measurements are done with AES17 20kHz filter and no weighting. Item Symbol Min Typ Max Unit Notes Output level Vout 14 dBu (4.1 Vrms) Distortion THD+N -117.5 dB (@ 0 dBFS) Signal-to-Noise ratio SNR 128.5 dB Dynamic range DR 127 dB Channel crosstalk -147 dB Audio performance data ADC All audio measurements are done with AES17 20kHz filter and no weighting. Item Symbol Min Typ Max Unit Notes Input level Vout 14 dBu (4.1 Vrms) Distortion THD+N -112 dB (@ -1 dBFS) Signal-to-Noise ratio SNR 119 dB Dynamic range DR 119 dB Channel crosstalk -139 dB Bandwith FC 40 kHz Supported formats Input PCM support DSD support Notes S/PDIF Up to 192 kHz / 24 bits No Optical (Toslink) Up to 192 kHz / 24 bits No USB type B Up to 384 kHz / 32 bits DoP: up to DSD256Native: up to DSD256 Network Up to 384 kHz / 32 bits DoP: up to DSD256Native: up to DSD256 Note 1 Bluetooth 48 kHz / 16 bits No AES/EBU Up to 192 kHz / 24 bits No Note 1: An additional internally installed streaming board is connected to an internal USB port of the digital input board. Supported formats depend on the chosen streaming board and software. Fusion Connect Function PCM support DSD support Notes S/PDIF (Output) 93.75 kHz / 24 bits No Note 2 Note 2: All formats, PCM and DSD, are converted to PCM 93.75 kHz   Please note: This product is only compatible with the PreAmplifier kit

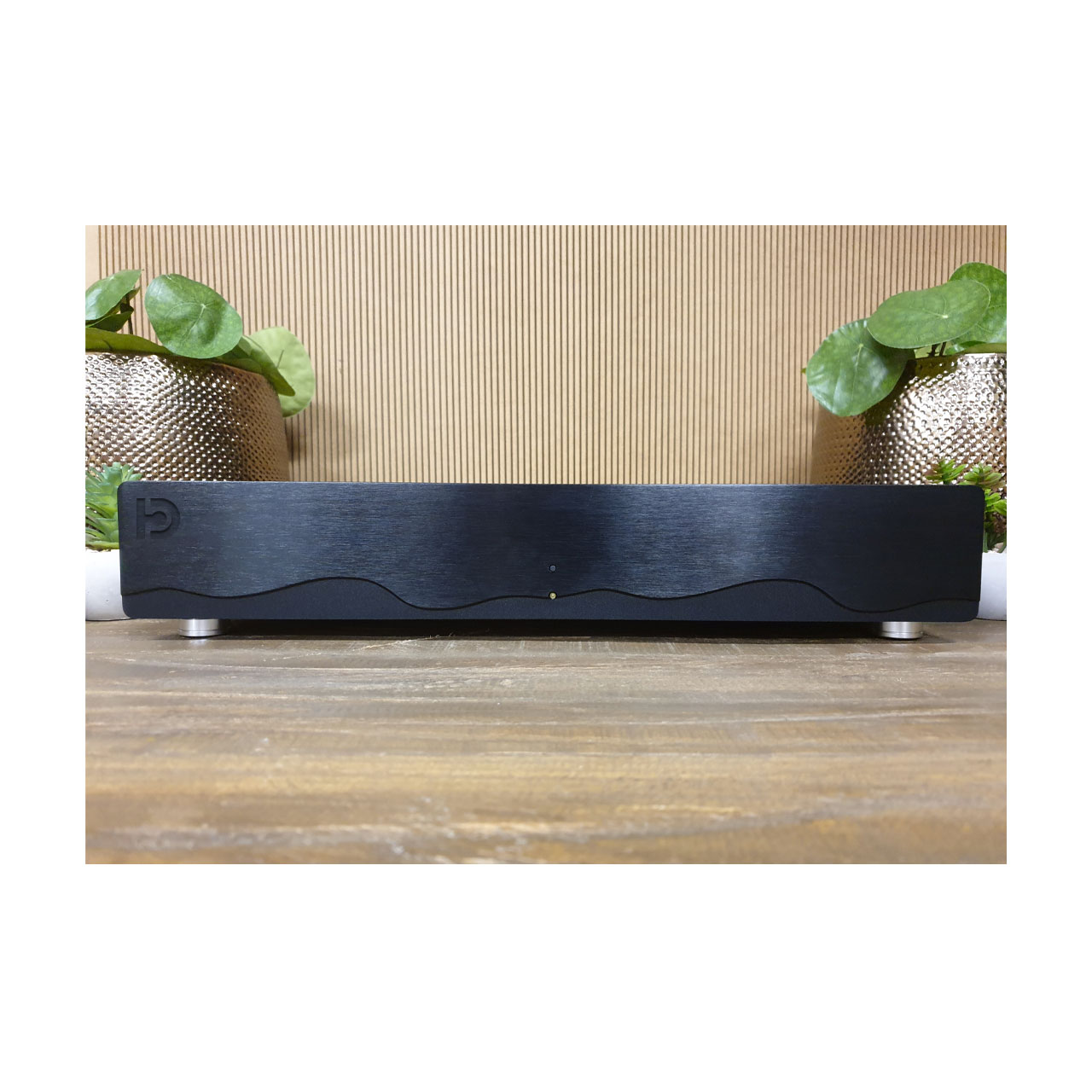

Nilai® Class D technology is here! Unleash the power of high-fidelity audio with the Nilai500 Stereo Kit — the ultimate DIY amplifier solution for audio enthusiasts. Built around two state-of-the-art Nilai500 amplifier modules designed by Hypex, this kit offers unmatched performance, ease of assembly, and flexibility for creating your own premium stereo power amplifier. The two Nilai500 modules deliver high-end performance with low distortion, high efficiency, and superb linearity, ensuring pristine, audiophile-grade sound. It is engineered to provide a clean and accurate audio signal, allowing every nuance of your music to be faithfully reproduced. The module's advanced Nilai® technology contributes to its high efficiency, reducing heat dissipation and enhancing overall system reliability. PS500 The kit also includes one PS500 power supply, which is engineered with high quality, efficiency, and reliability in mind. Both Nilai500 modules share this single power supply. This regulated power supply minimizes noise and distortion while providing robust power output. A regulated power supply ensures consistent voltage and current delivery, preventing fluctuations that can introduce noise and distort the audio signal. As a result, you get a cleaner, more accurate sound with improved dynamics, detail, and clarity. SMOOTH DELIVERY This kit provides an impressive output of 250 watts at 2 ohms, 300 watts at 4 ohms and 260 watts at 8 ohms, making it an excellent choice for all medium-sized speakers. It delivers dynamic and engaging audio performance, ideally suited for a variety of listening environments. However, for the most demanding, large-scale speaker setups, please refer to the Nilai500 mono kit. No soldering required! The kit includes all necessary components and straightforward instructions, making it accessible for beginners and experienced DIYers alike. Also, a building instruction video is available at the video tab. Seamlessly integrate this amplifier with other components in your audio system using the available 12V trigger input for synchronized power control. You'll also find a user-friendly on/off switch button on the front panel for easy access and operation. MAKE IT YOURS Perfect for creating a high-power, stereo setup or expanding your existing multi-channel audio system, this kit is equipped with a rear LED switch that allows you to easily adjust the brightness of the front LED, ensuring it fits perfectly with your room's ambiance or matches the brightness of your setup. The kit also offers flexibility to tailor the final build to your personal style or existing setup with the available faceplates. Whether you're an audiophile or a DIY enthusiast, the Nilai500 stereo kit brings the joy of building your own high-performance amplifier with professional-level results. Experience the benefits of Hypex's cutting-edge Nilai® amplification technology, with reduced heat dissipation, higher efficiency, and exceptional sound quality. The Nilai500 stereo kit is a perfect match with the Hypex Direct PreAmplifier, allowing you to create a complete, high-performance audio system with seamless integration and exceptional sound quality. Build your own audio masterpiece with the Nilai500 stereo kit and enjoy uncompromised sound quality, tailored to your taste. Warranty: 5 years / 20.000h FEATURES • THD+N: 0,00015% (-116dB) @ 100W / 4Ohm / 20.000Hz • Output noise: 9,5µV @11,8dB gain • Gain adjust in 3 steps (11,8 - 21,8 and 27,8) • High fidelity components • Discrete buffer stage and regulators • Dedicated high-end power supply PS500 included SPECIFICATIONS Inputs • 1 x Trigger 12V • 2 x Balanced XLR Outputs • 2 x Goldplated Bindingpost Set (Banana plug, Spade plug or Bare wire) CONTENTS OF PACKAGING • Complete stereo case • 2x Nilai500 amplifier module • 1x PS500 Power Supply • Complete internal cable harness • Complete mounting set • Nilai500 stereo kit user assembly guide • Nilai500 stereo kit user manual Also available as 500W mono kit

Nilai® Class D technology is here! Unleash the power of high-fidelity audio with the Nilai500 Mono Kit — the ultimate DIY amplifier solution for audio enthusiasts. Built around the state-of-the-art Nilai500 amplifier module designed by Hypex, this kit offers unmatched performance, ease of assembly, and flexibility for creating your own premium mono-channel amplifier. The Nilai500 module delivers high-end performance with low distortion, high efficiency, and superb linearity, ensuring pristine, audiophile-grade sound. It is engineered to provide a clean and accurate audio signal, allowing every nuance of your music to be faithfully reproduced. The module's advanced Nilai® technology contributes to its high efficiency, reducing heat dissipation and enhancing overall system reliability. PS500 The kit also includes the PS500 power supply, which is engineered with high quality, efficiency, and reliability in mind. This regulated power supply minimizes noise and distortion while providing robust power output. A regulated power supply ensures consistent voltage and current delivery, preventing fluctuations that can introduce noise and distort the audio signal. As a result, you get a cleaner, more accurate sound with improved dynamics, detail, and clarity. power to deliver This kit provides an impressive output of 500 watts at 2 ohms, 525 watts at 4 ohms and 260 watts at 8 ohms, making it capable of driving demanding speakers with ease and delivering dynamic, powerful audio. Too much power for your speakers? For medium-sized speakers, please consider the Nilai500 stereo kit, which provides a suitable balance of power and performance for a variety of listening environments. No soldering required! The kit includes all necessary components and straightforward instructions, making it accessible for beginners and experienced DIYers alike. Also, a building instruction video is available at the video tab. Seamlessly integrate this amplifier with other components in your audio system using the available 12V trigger input for synchronized power control. You'll also find a user-friendly on/off switch button on the front panel for easy access and operation. PERSONALIZE Perfect for creating a high-power, dual-mono setup or expanding your existing multi-channel audio system, this kit is equipped with a rear LED switch that allows you to easily adjust the brightness of the front LED, ensuring it fits perfectly with your room's ambiance or matches the brightness of your setup. The kit also offers flexibility to tailor the final build to your personal style or existing setup with the available faceplates. Whether you're an audiophile or a DIY enthusiast, the Nilai500 mono kit brings the joy of building your own high-performance amplifier with professional-level results. Experience the benefits of Hypex's cutting-edge Nilai® amplification technology, with reduced heat dissipation, higher efficiency, and exceptional sound quality. The Nilai500 mono kit is a perfect match with the Hypex Direct PreAmplifier, allowing you to create a complete, high-performance audio system with seamless integration and exceptional sound quality. Build your own audio masterpiece with the Nilai500 mono kit and enjoy uncompromised sound quality, tailored to your taste. Warranty: 5 years / 20.000h FEATURES • Ultra Low Distortion • Very Low Idle Power • Very Low Noise • Very Low Output Impedance • Incorporates Audiophile Components SPECIFICATIONS Inputs • 1 x Trigger 12V • 1 x Balanced XLR Outputs • 1 x Goldplated Bindingpost Set (Banana plug, Spade plug or Bare wire) THIS KIT CONTAINS • Complete Hypex Direct Nilai500 mono case “matte black”, • Complete internal cable harness, • PS500 power supply, • Nilai500 amplifier module, • Inputboard & Frontboard, • All needed mounting materials, • Assembly instruction, • 1.5mm Allen key, • 2.5mm Allen key, • TX-10 Torx key, • TX-20 Torx key Also available as 2 x 250W stereo kit

Hypex Direct Interconnects are the best protected audio signal cables in the industry. Connecting your audio devices with High-End cables can now be done for a very affordable price. The Hypex Direct Interconnects are Custom-made double shielded twisted-pair cables, specifically designed for the highest RFI immunity and lowest microphonic noise. Hypex Direct Interconnects are the perfect link between our PreAmplifier Kit, Nilai® power amplifiers or active (fusion amp powered) loudspeakers. The XLR - XLR interconnects have silver plated plated connectors to guarantee an optimal, uncolored signal transmission. Hypex Direct Interconnects are the best protected audio signal cables in the industry because of their Silver-plated conductors with PTFE tape-wrapped insulation, glass-fibre stabilisers and two layers of braided shield over a bonded carbon triboelectric charge drain layer. Available in 1m and 2m. Highlights • Double shielded twisted-pair cable • Silver plated conductors • PTF tape-wrapped insulation • Glass-fibre stabilisers • Highest RFI immunity • Lowest microphonic noise What's in the box • 1 pair (2 pieces) of XLR - XLR cables

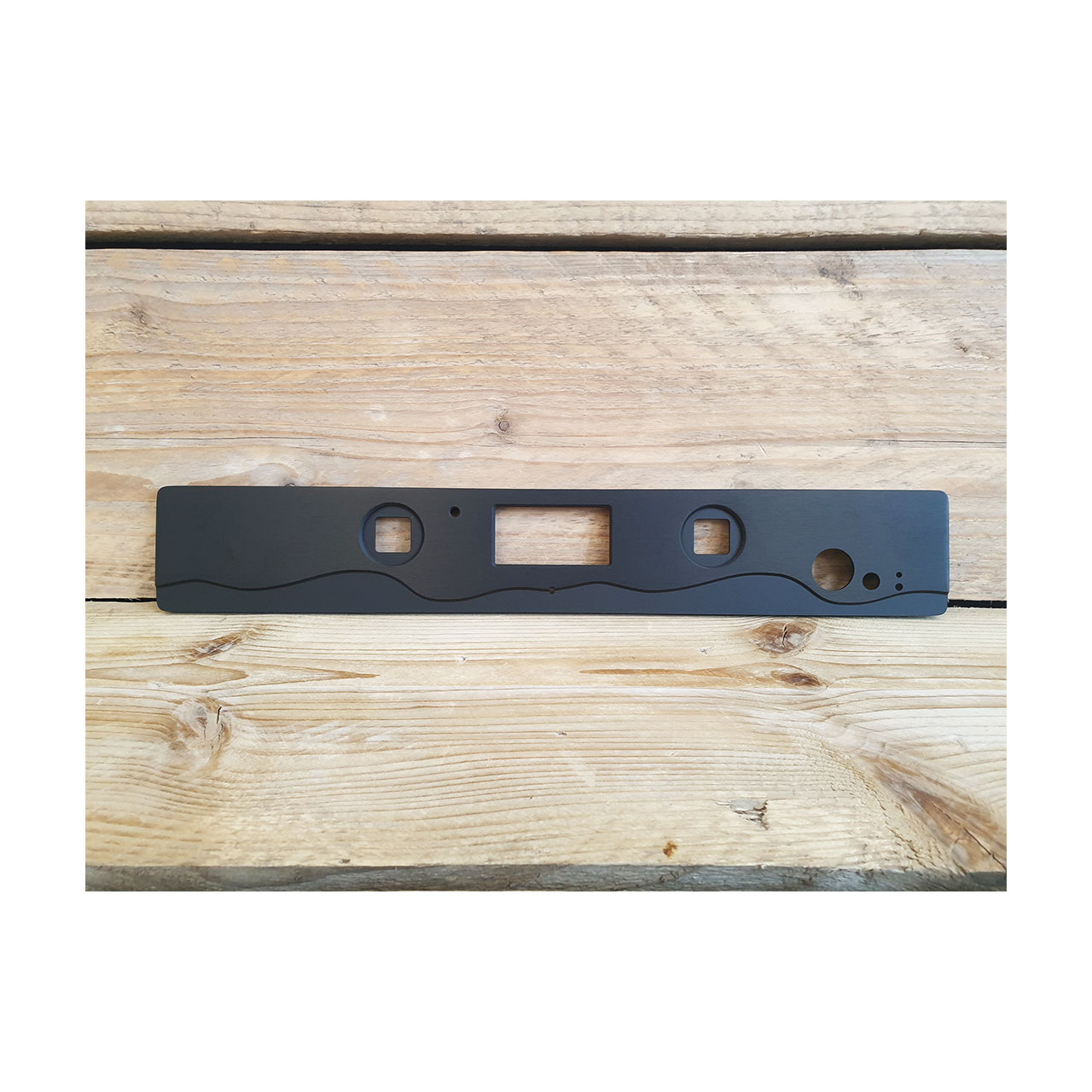

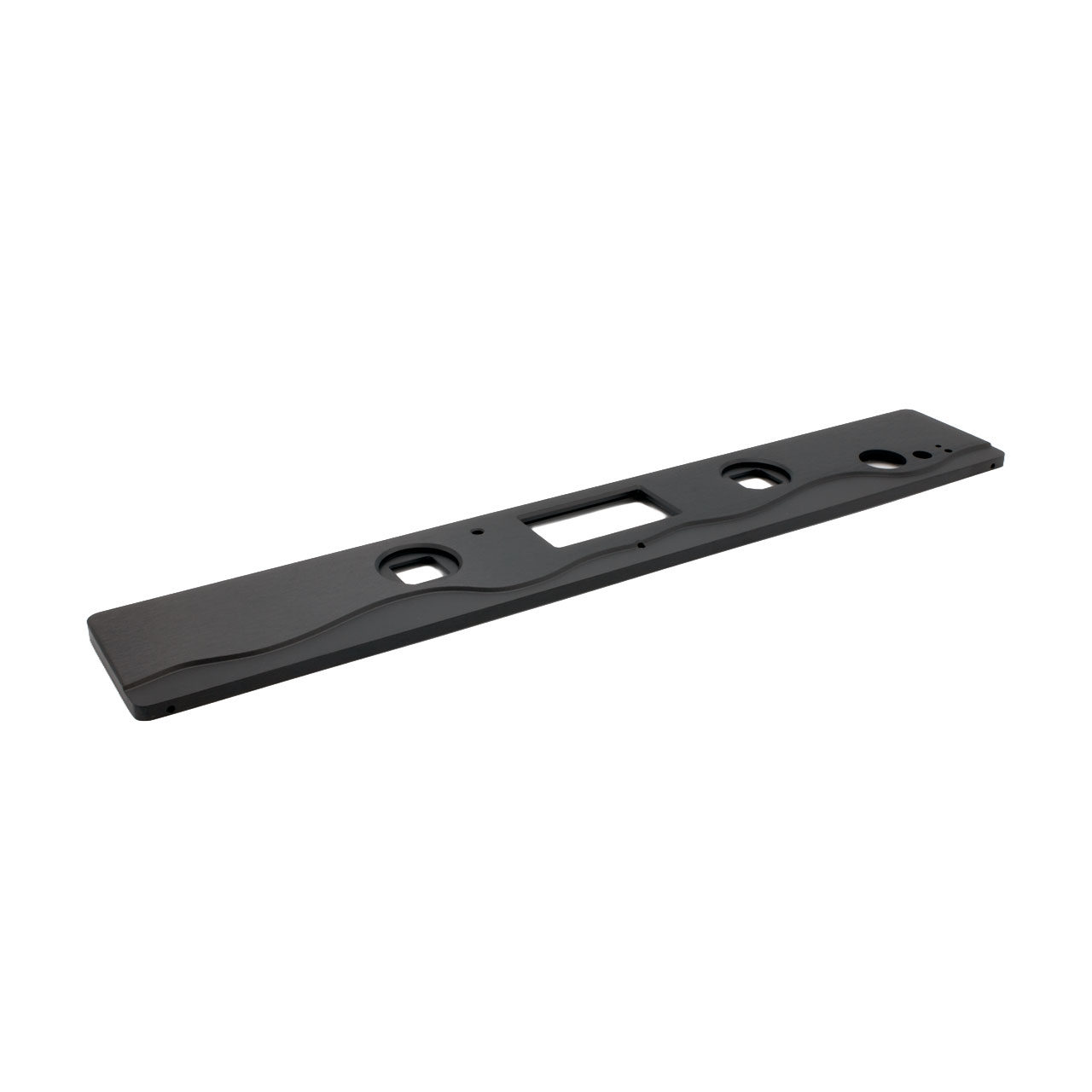

Change the aesthetics of your Hypex Direct amplifier kit with our premium Matte Black Faceplate without the HD logo engraving, designed to provide a sleek and sophisticated upgrade. Crafted with precision and elegance, this faceplate is the perfect solution for those looking to personalize the visual appeal of their Hypex Direct amplifier kit. The Matte Black Faceplate boasts a modern, matte black finish that adds a touch of luxury to your amplifier. Made from durable, high-grade aluminum, this faceplate is built to last. Its robust construction ensures that it can withstand regular use while maintaining its pristine appearance. Easy install Designed for hassle-free installation, the Matte Black Faceplate can be easily exchanged with the original supplied faceplate. Simply detach the original faceplate and front PCB, mount the front PCB on the new faceplate, and attach the new Faceplate to your Hypex Direct amplifier kit. Don't just settle for standard. Upgrade your amplifier with this Matte Black Faceplate and enjoy a perfect blend of style, functionality, and Sound Quality. Make a statement with your audio setup and let your amplifier shine not only from the inside but on the outside as well. Note The original knobs of the Preamplifier kit have to be used with this faceplate AVAILABLE FACEPLATES • PreAmplifier Black faceplate • Mono Black faceplate (2 pieces) • Stereo Black faceplate • PreAmplifier Silver faceplate • Mono Silver faceplate (2 pieces) • Stereo Silver faceplate

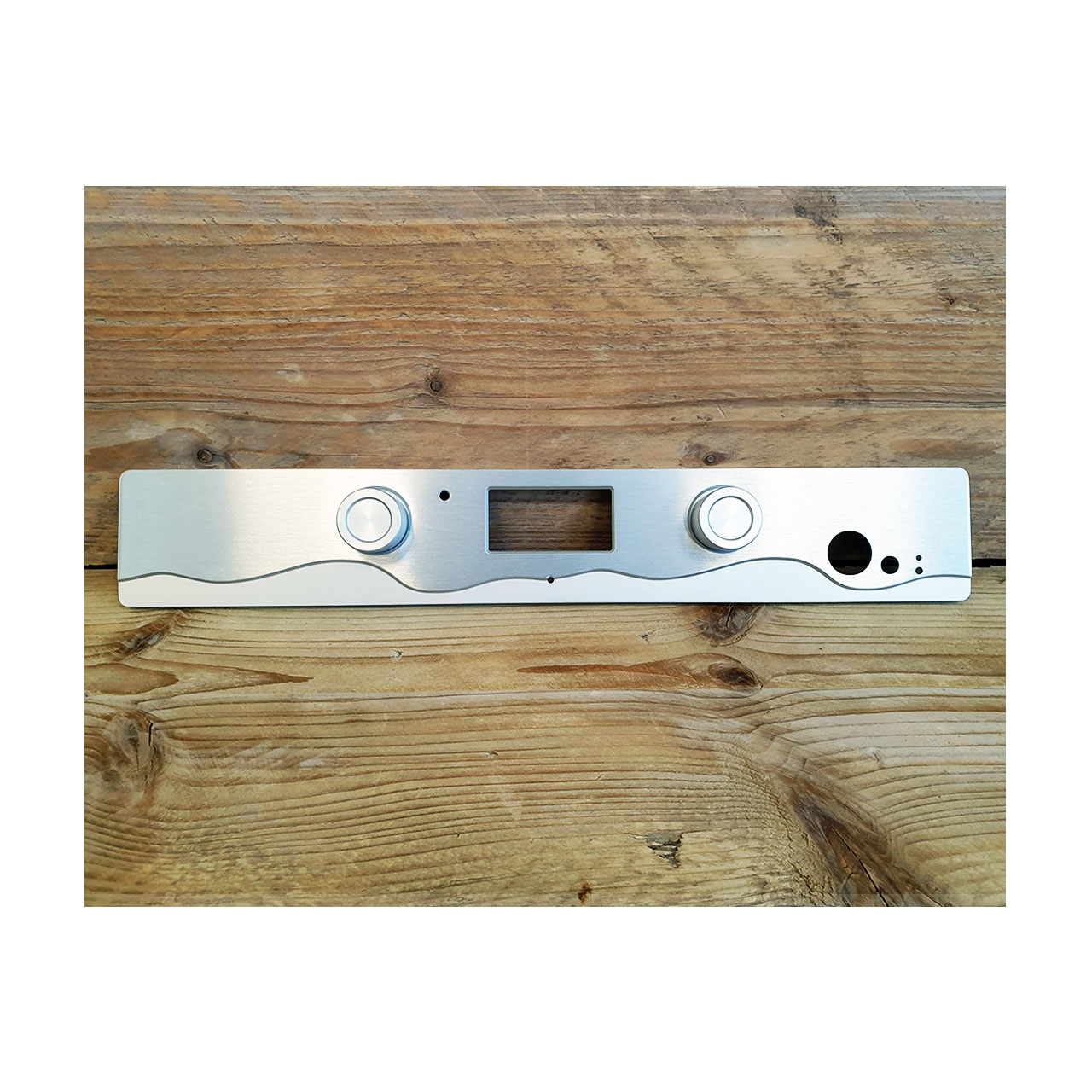

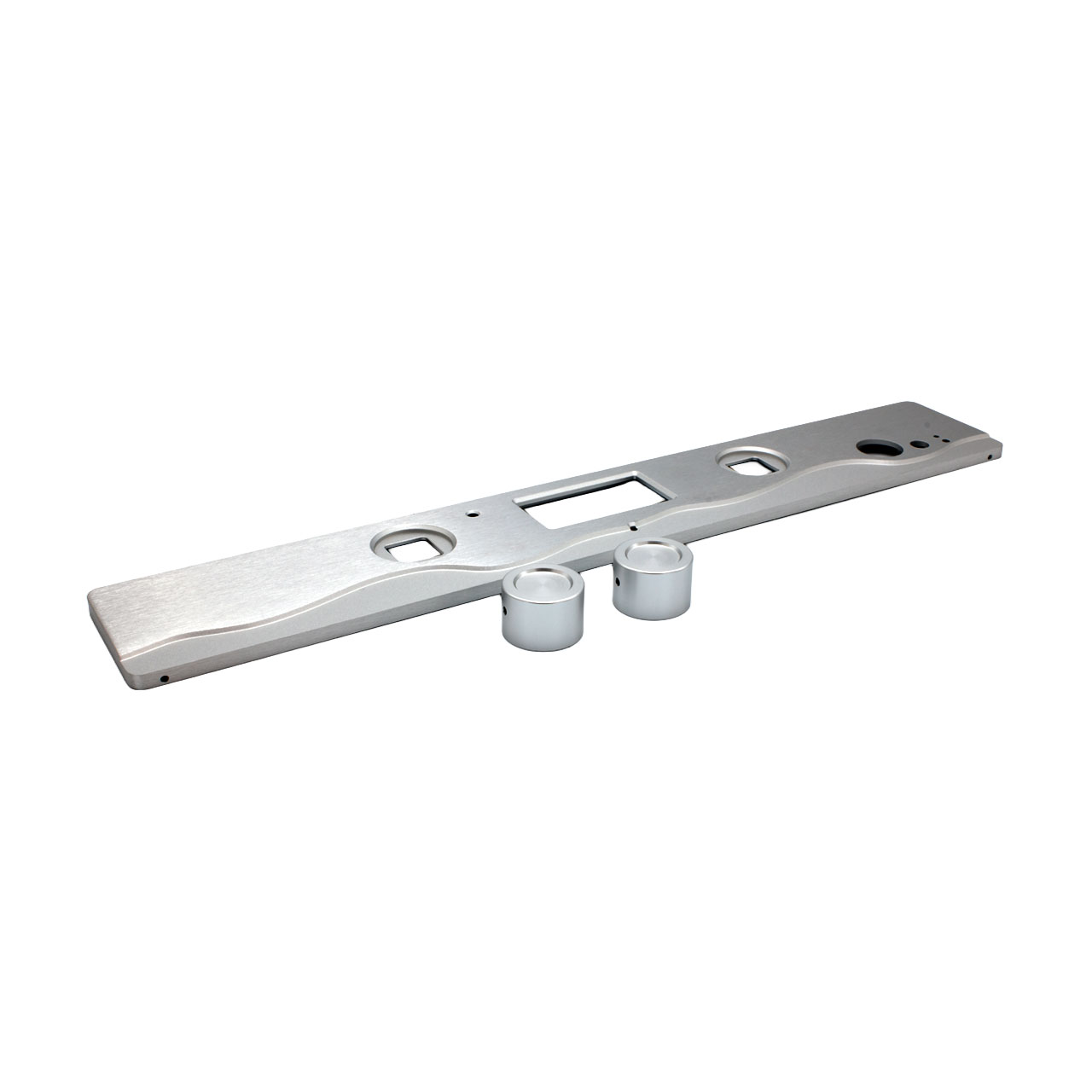

Change the aesthetics of your DIYclassD amplifier kit with our premium Silver Faceplate without DIYclassD engraving, designed to provide a sleek and sophisticated upgrade. Crafted with precision and elegance, this faceplate is the perfect solution for those looking to personalize the visual appeal of their DIYclassD amplifier kit. The Silver Faceplate boasts a modern, polished silver finish that adds a touch of luxury to your amplifier. Made from durable, high-grade aluminum, this faceplate is built to last. Its robust construction ensures that it can withstand regular use while maintaining its pristine appearance. Easy install Designed for hassle-free installation, the Silver Faceplate can be easily exchanged with the original supplied faceplate. Simply detach the original faceplate and front PCB, mount the front PCB on the new faceplate, and attach the new Faceplate to your DIYclassD amplifier kit. Don't just settle for standard. Upgrade your amplifier with this Silver Faceplate and enjoy a perfect blend of style, functionality, and Sound Quality. Make a statement with your audio setup and let your amplifier shine not only from the inside but on the outside as well. Note This faceplate includes silver knobs. AVAILABLE FACEPLATES • DIY PreAmplifier Black faceplate • DIY Mono Black faceplate (2 pieces) • DIY Stereo Black faceplate • DIY PreAmplifier Silver faceplate • DIY Mono Silver faceplate (2 pieces) • DIY Stereo Silver faceplate

Change the aesthetics of your Hypex Direct amplifier kit with our premium Silver Faceplate without the HD logo engraving, designed to provide a sleek and sophisticated upgrade. Crafted with precision and elegance, this faceplate is the perfect solution for those looking to personalize the visual appeal of their Hypex Direct amplifier kit. The Silver Faceplate boasts a modern, polished silver finish that adds a touch of luxury to your amplifier. Made from durable, high-grade aluminum, this faceplate is built to last. Its robust construction ensures that it can withstand regular use while maintaining its pristine appearance. Easy install Designed for hassle-free installation, the Silver Faceplate can be easily exchanged with the original supplied faceplate. Simply detach the original faceplate and front PCB, mount the front PCB on the new faceplate, and attach the new Faceplate to your Hypex Direct amplifier kit. Don't just settle for standard. Upgrade your amplifier with this Silver Faceplate and enjoy a perfect blend of style, functionality, and Sound Quality. Make a statement with your audio setup and let your amplifier shine not only from the inside but on the outside as well. Note This faceplate includes silver knobs. AVAILABLE FACEPLATES • PreAmplifier Black faceplate • Mono Black faceplate (2 pieces) • Stereo Black faceplate • PreAmplifier Silver faceplate • Mono Silver faceplate (2 pieces) • Stereo Silver faceplate

Mains power cable to connect your products with IEC 60320 C13 and Euro connection.

Mains power cable to connect your products with USA and IEC 60320 C13 connection.
