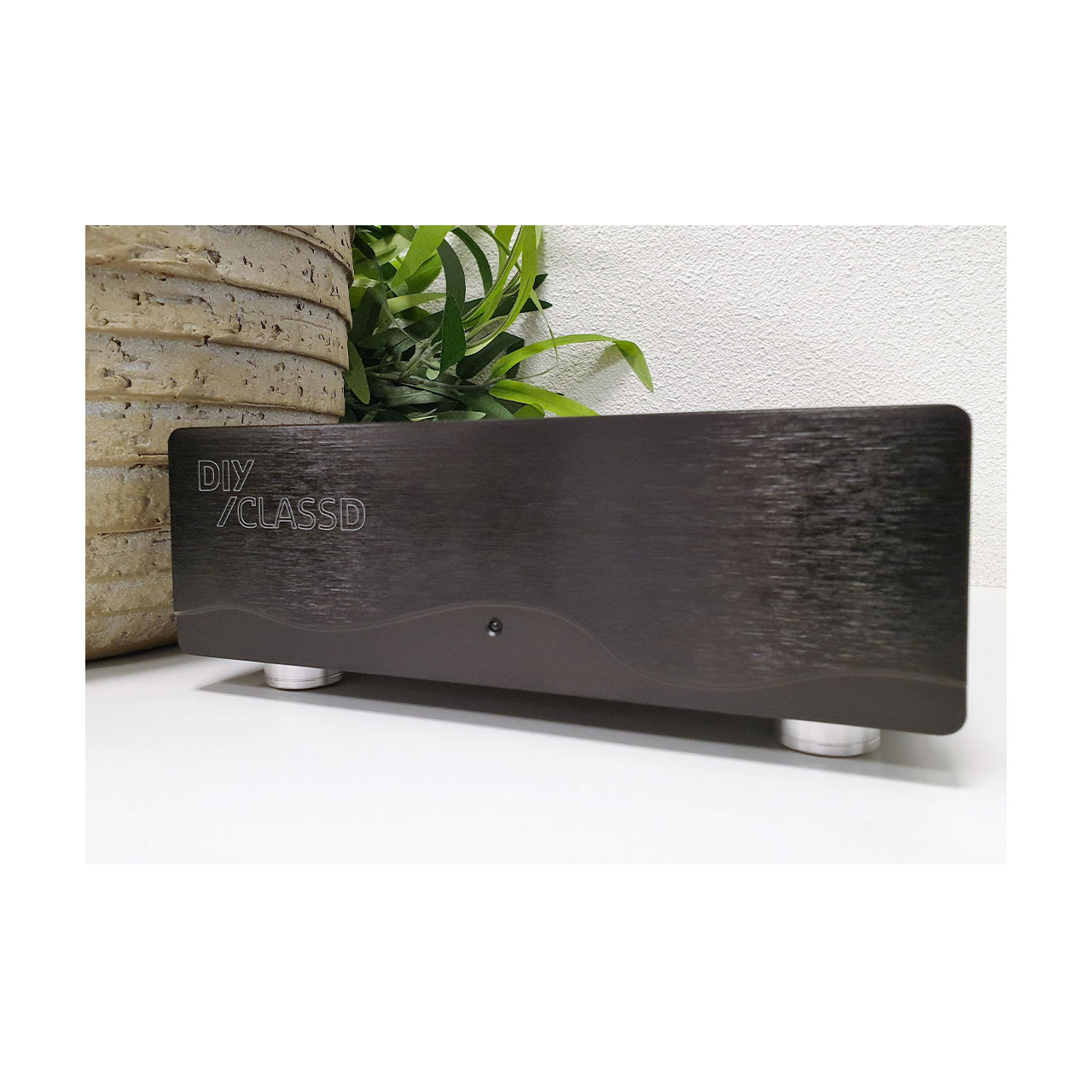

NC400 mono kit
Product information "NC400 mono kit"
*** This product is discontinued ***
Internal size: 193mm(W) x 58mm(H) x 265mm(D)
External size: 200mm(W) x 79mm(H) x 280mm(D) (size incl feet, excl connectors)
THIS KIT CONTAINS

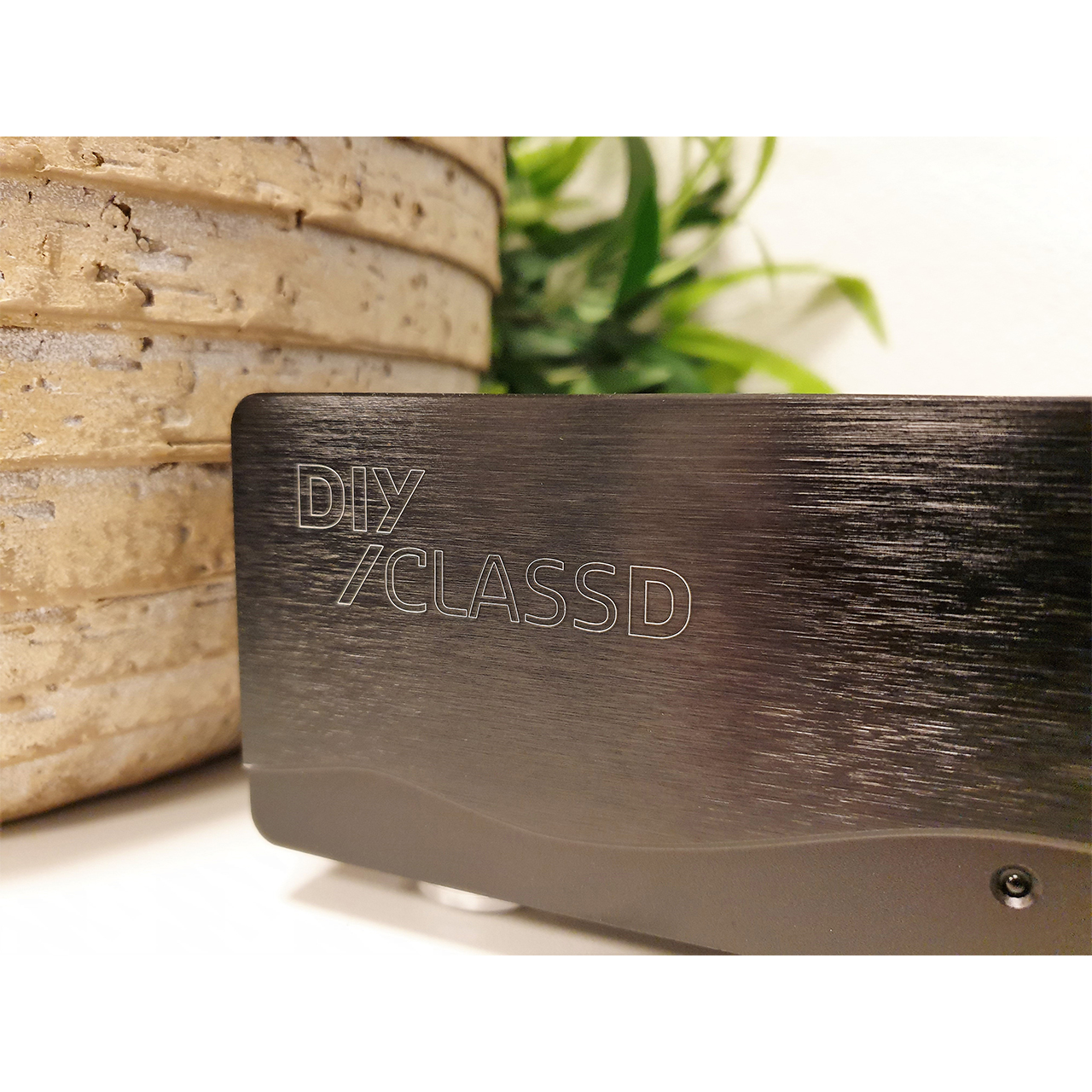

- Hypex DIY mono case
- NC400
- SMPS600

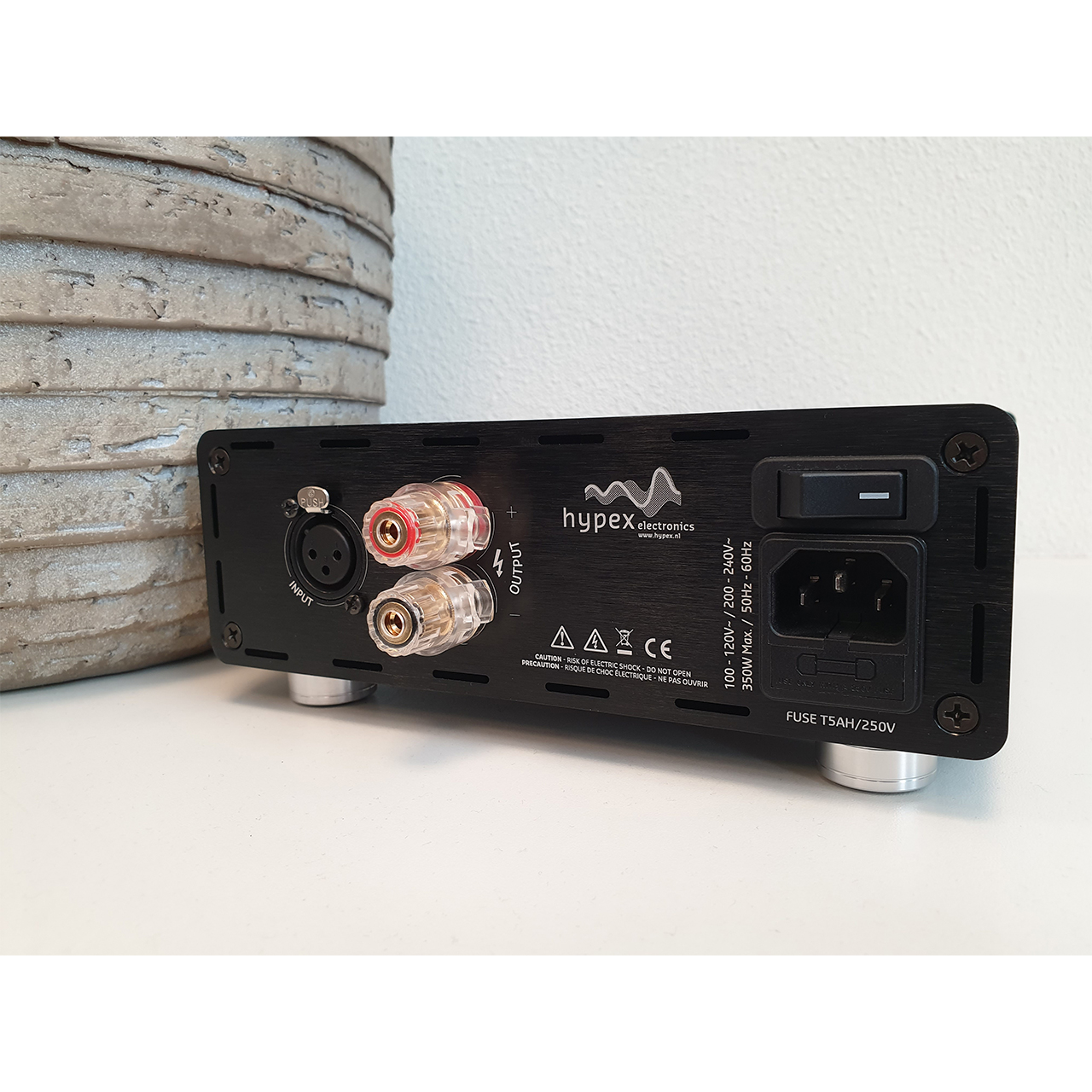

- Power connector IEC 60320 C14 fused (incl. 5 AT fuses)
- Switch on-off
- Binding post clear
- Signal cable with XLR female chassis
- Internal speaker wires
- Internal mains wires
- Protective earth cable
- All needed bolts
| Output Power (2Ω): | 1 x 580W |
|---|---|
| Output Power (4Ω): | 1 x 400W |
| Output Power (8Ω): | 1 x 200W |
| Channels: | 1 |
| HxR Ready: | On board |
| SMPS Voltage +/-: | 2 x 65V |
| Compatible SMPS: | Included in kit |
| Technology: | NCORE® |
Downloads
documentation
