UcD700HG
H01U000655
Product information "UcD700HG"
*** This product is discontinued ***

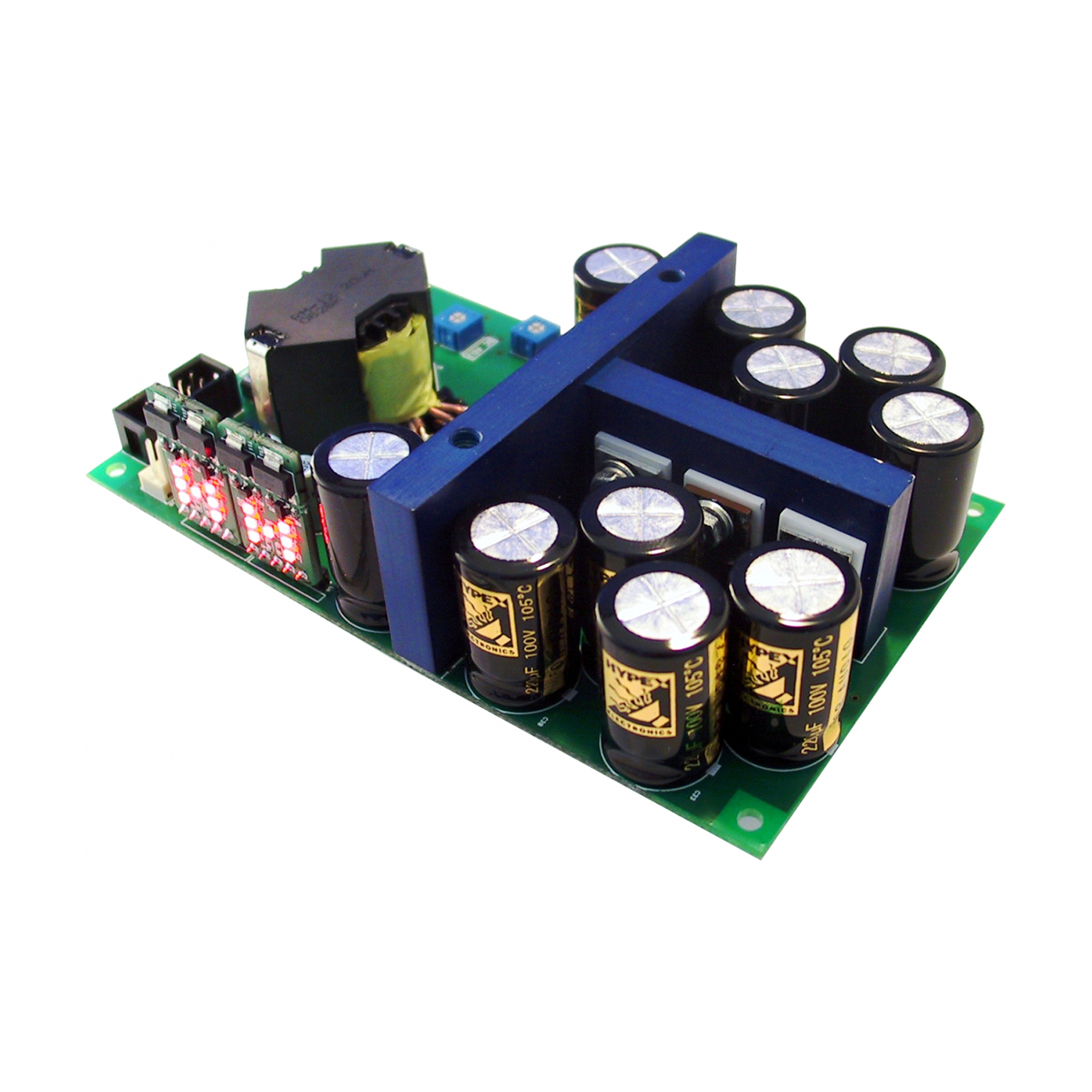

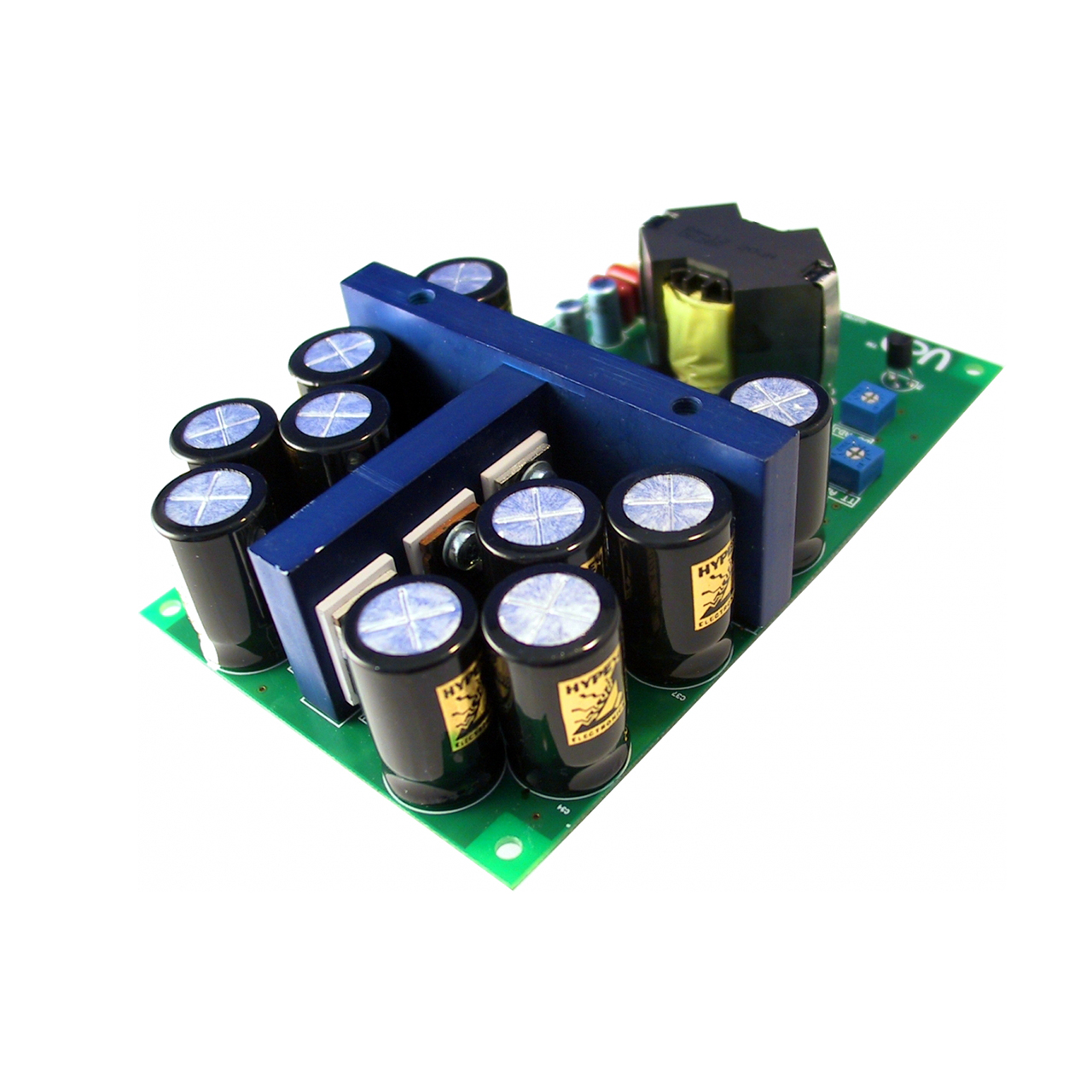

The UcD700HG amplifier module is a self-contained high-performance class D amplifier intended for a wide range of audio applications, ranging from Public Address systems to ultrahigh-fidelity replay systems for studio and home use. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency-independent distortion behaviour and very low radiated and conducted EMI. Control is based on a phase-shift controlled self-oscillating loop taking feedback only at the speaker output.
APPLICATIONS
- Audiophile power amplifiers for professional and consumer use
HIGHLIGHTS
- Flat, fully load-independent frequency responce
- Low output inpedance
- Very low, frequency-independent THD Fully passive loop control
- Consistent top performer in listening trails
GENERAL FEATURES
- Runs on unregulated +/- rails
- Pop-free start and stop control
- Differential audio input Overcurrent and overvoltage protection
- HxR ready
| Output Power (4Ω): | 1 x 700W |
|---|---|
| Channels: | 1 |
| Current limit @: | 28A |
| HxR Ready: | Yes |
| OpAmp: | LM4562 |
| Over voltage protection @: | 96V |
| SMPS Voltage +/-: | 85V |
| Under voltage protection: | 75V |
| Technology: | UcD™ |
