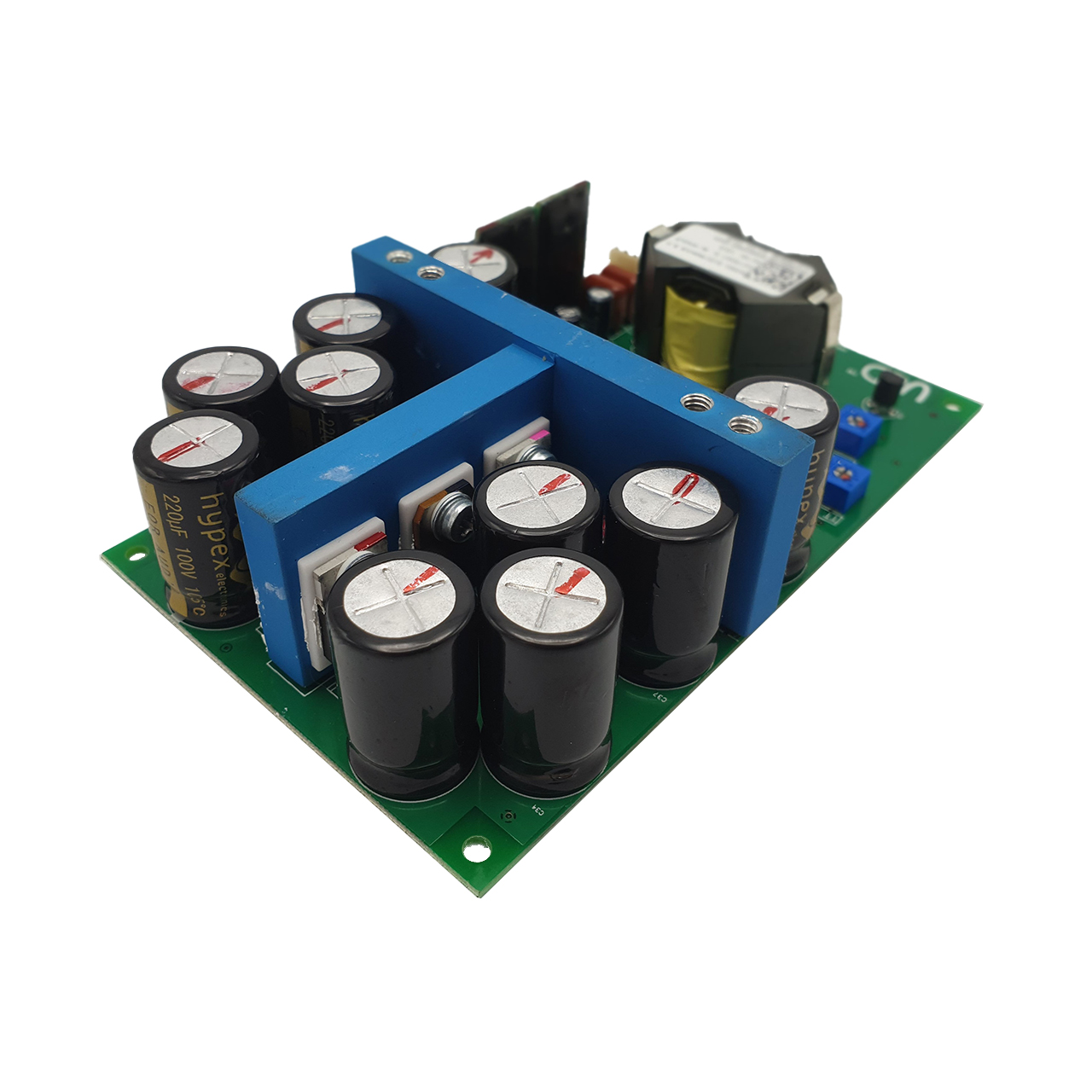

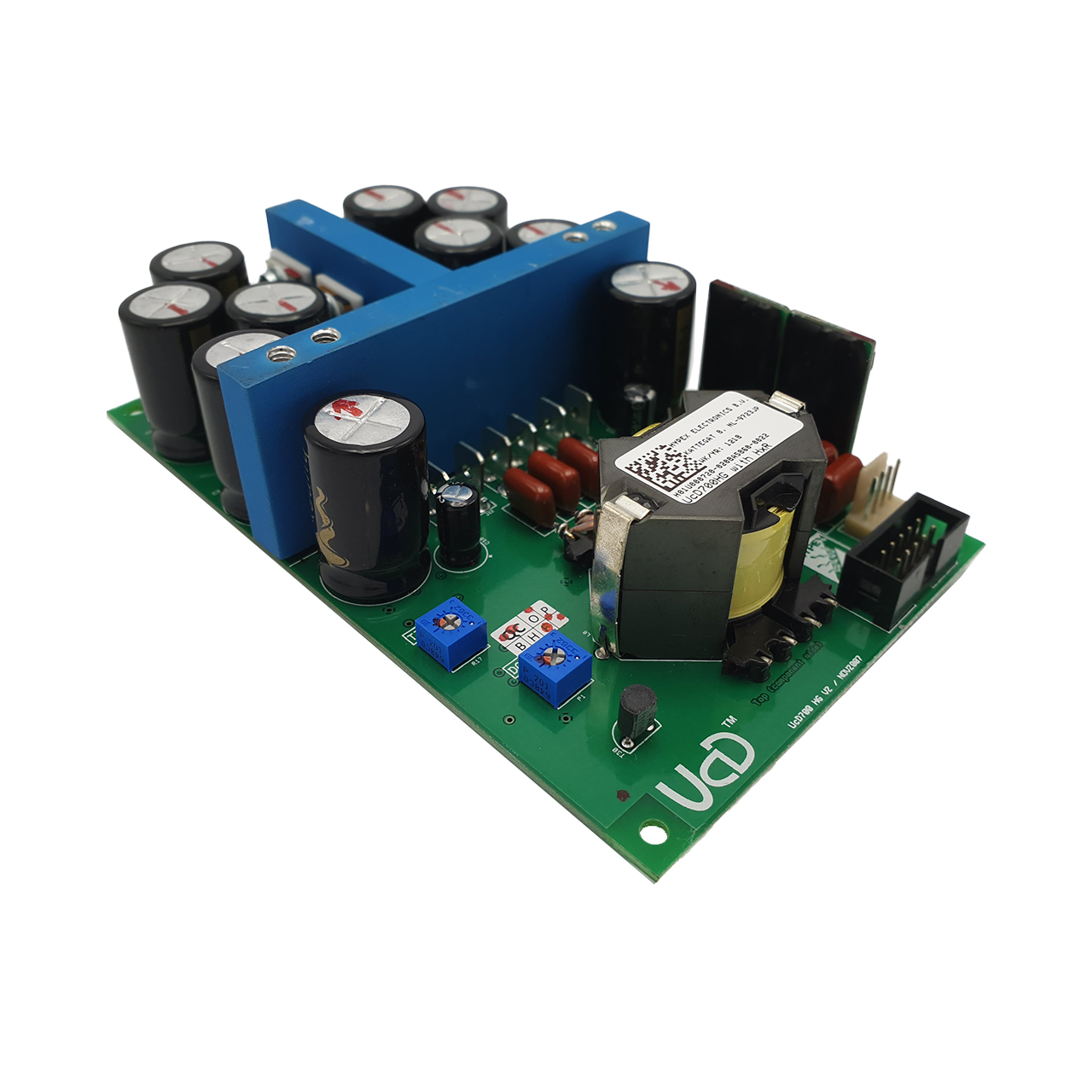

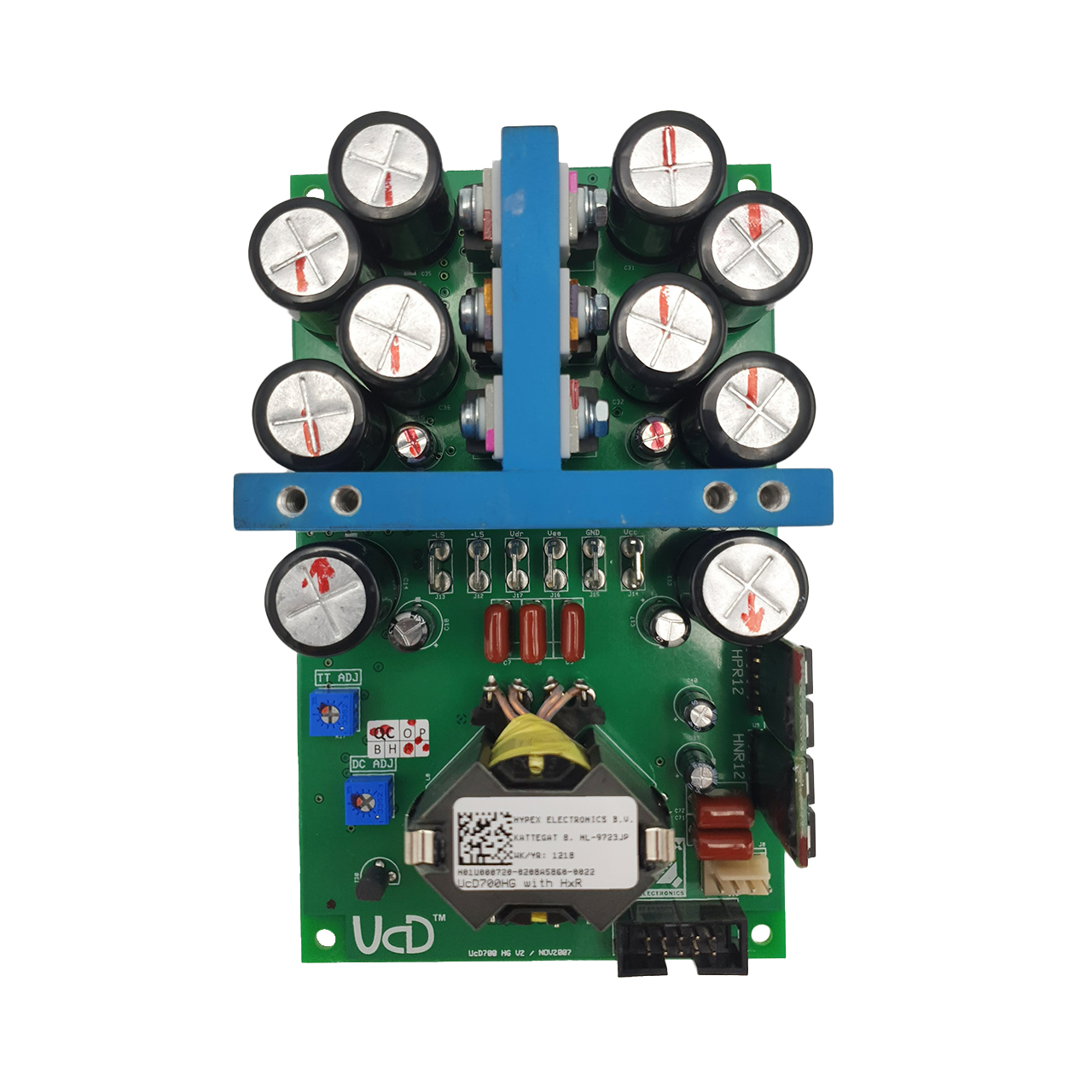

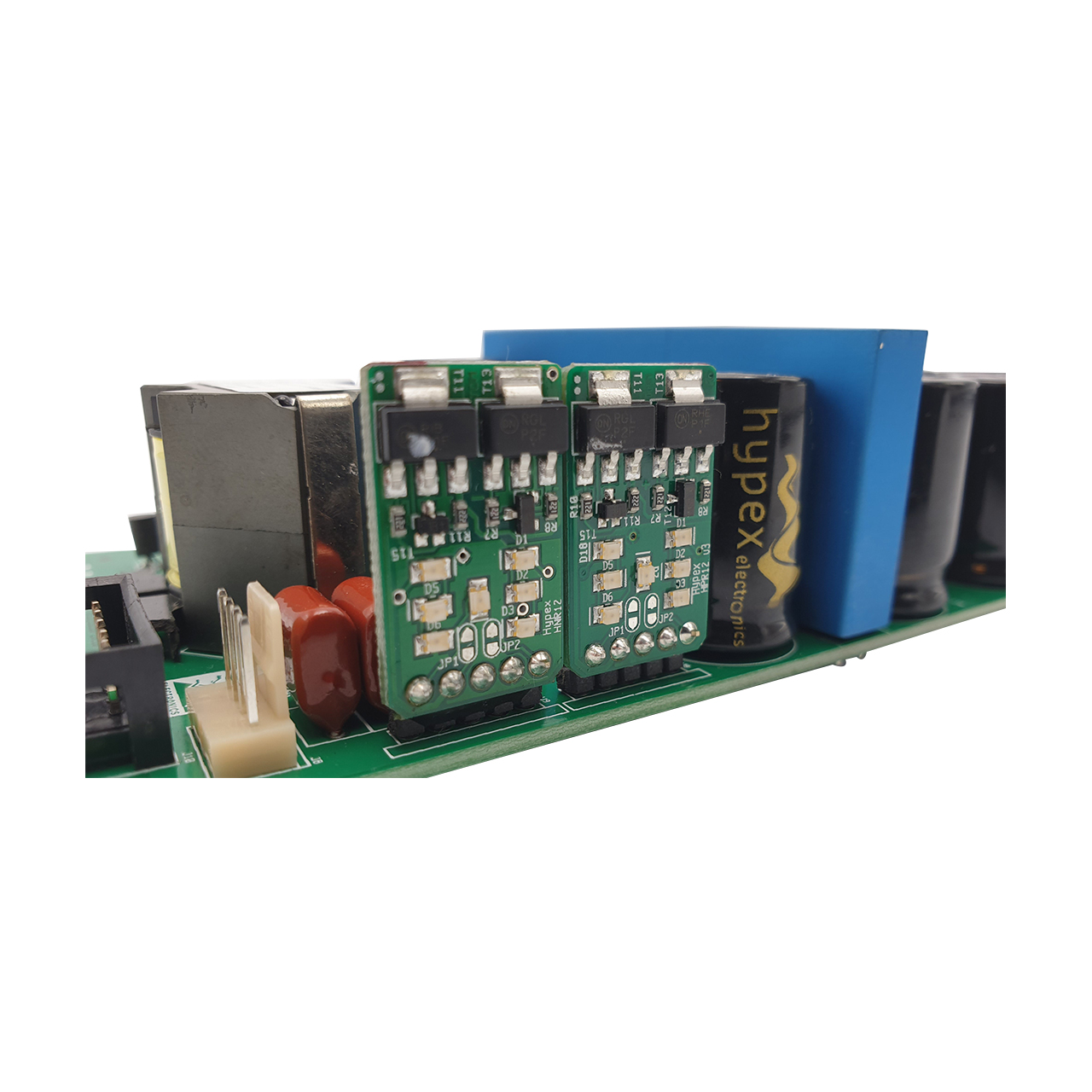

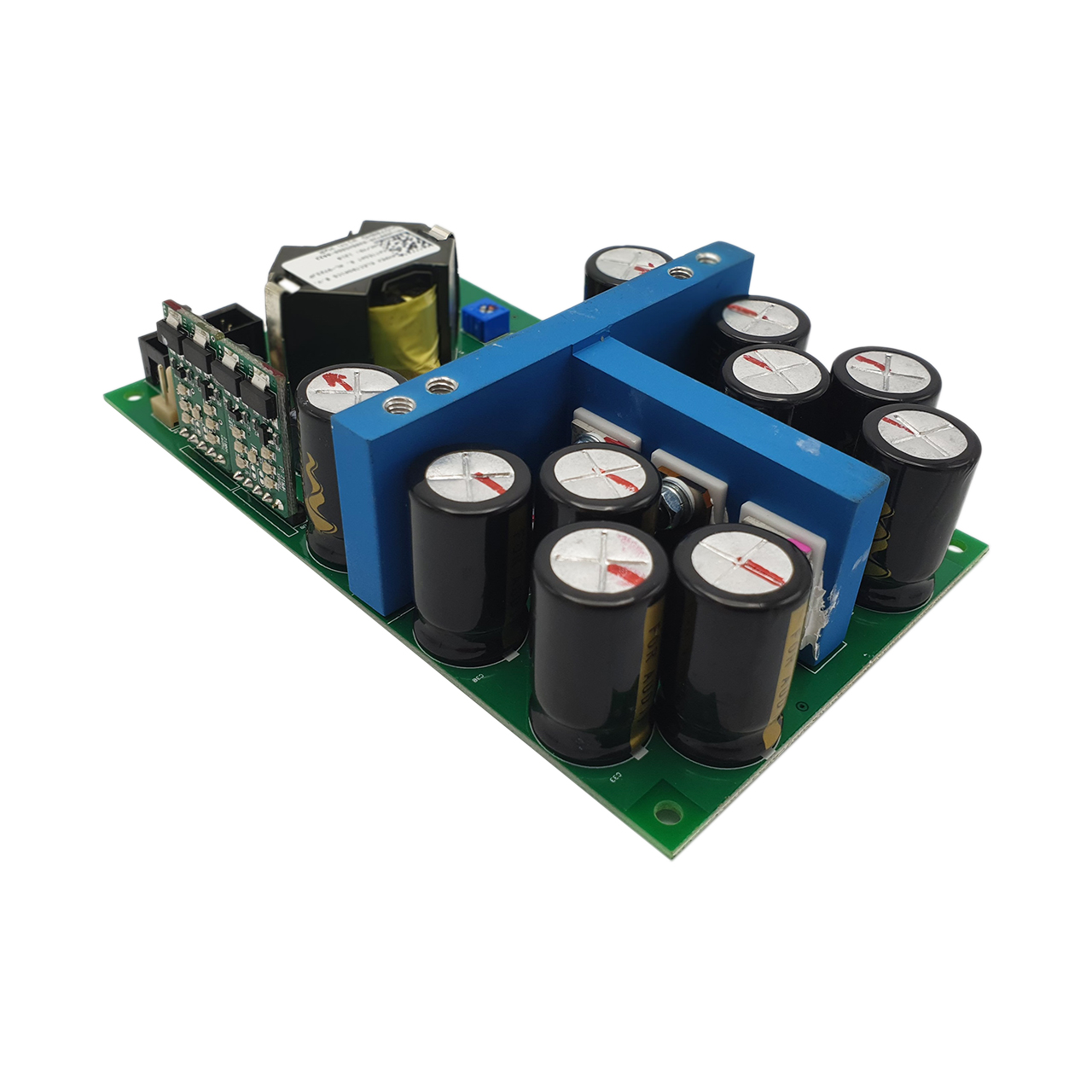

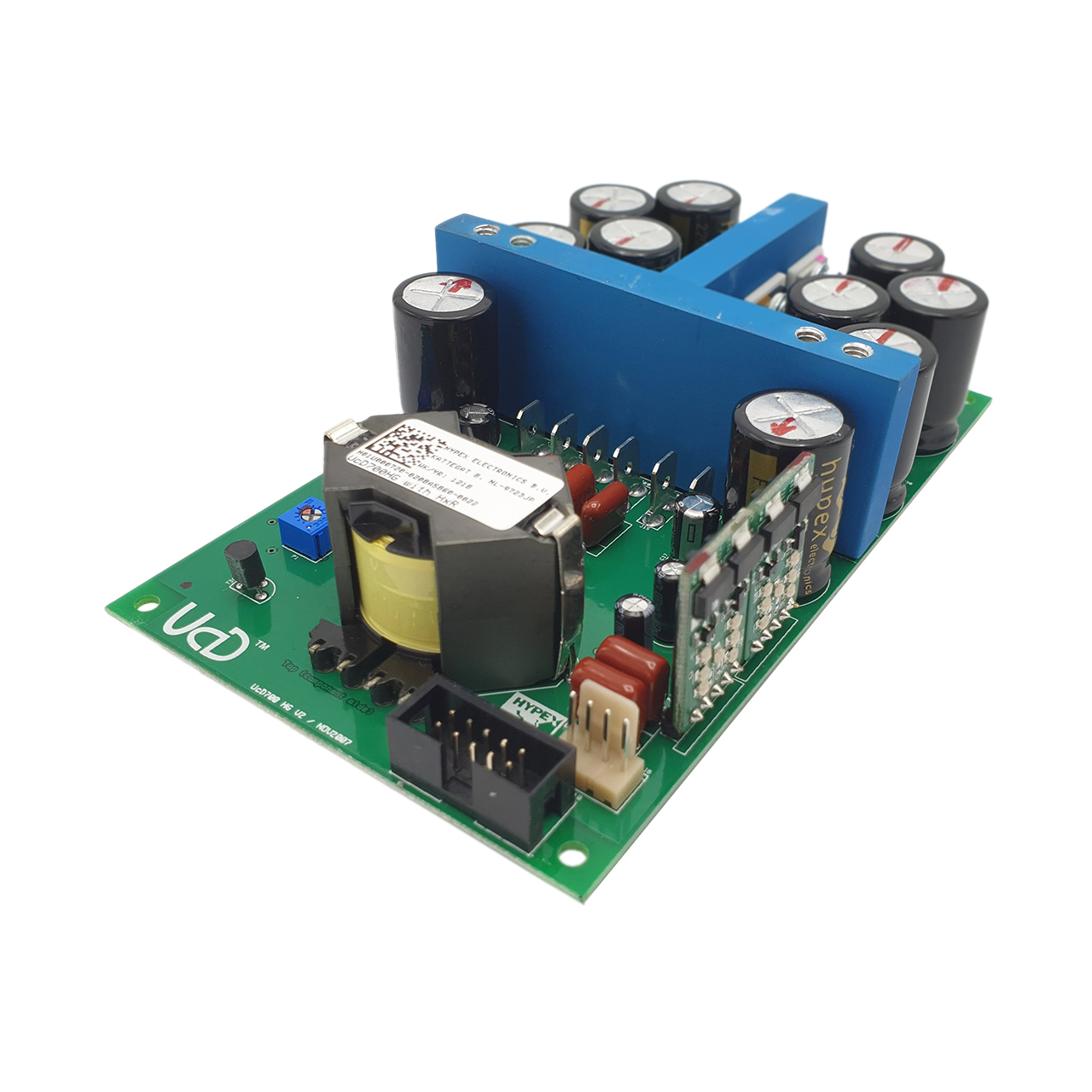

UcD700HG with HxR

The SMPS1200 is a high efficiency Safety Class 2 switch mode power supply designed for use with UcD™, NCORE® and NCOREx® amplifier modules. The unit is intended for audio systems that require stable power delivery across a wide load range in a compact and lightweight format. The power supply includes an overcurrent protection mechanism that limits output current during temporary overload conditions. It also provides symmetrical auxiliary outputs and a control interface for operation with UcD™, NCORE® and NCOREx® amplifier modules. The SMPS1200 is designed to achieve low levels of radiated and conducted electromagnetic interference. The topology and layout are optimised to meet EMI requirements commonly associated with professional and high end audio applications. The power supply supports a selectable input voltage range, allowing operation with different mains supply specifications. This supports use in international applications with varying power grid standards. SMPS1200 is a 2-quadrant full bridge rectifier, making it possible to supply single ended class d amplifiers. The SMPS1200 complies with applicable safety and performance standards and is certified for use in professional audio equipmen HIGHLIGHTS • High efficiency • Small form factor • Low EMI FEATURES • 2-quadrant full bridge rectifier • Selectable input voltage range • External controlled operation • 4 variants available: A100 / A180 / A400 / A700 PROTECTIONS • Advanced Overcurrent protection • Over temperature protection • DC detection input POSSIBLE APPLICATIONS • Active Loudspeakers, for home and professional use • Line Array and Immersive Systems • Power Amplifiers, for home and professional use • Multichannel Power Amplifiers • Home Theatre Systems POSSIBLE APPLICATIONS • Active Loudspeakers, for home and professional use • Line Array and Immersive Systems • Power Amplifiers, for home and professional use • Multichannel Power Amplifiers • Home Theatre Systems Note: NCORE® and NCOREx® amplifier modules are not available for DIY customers.

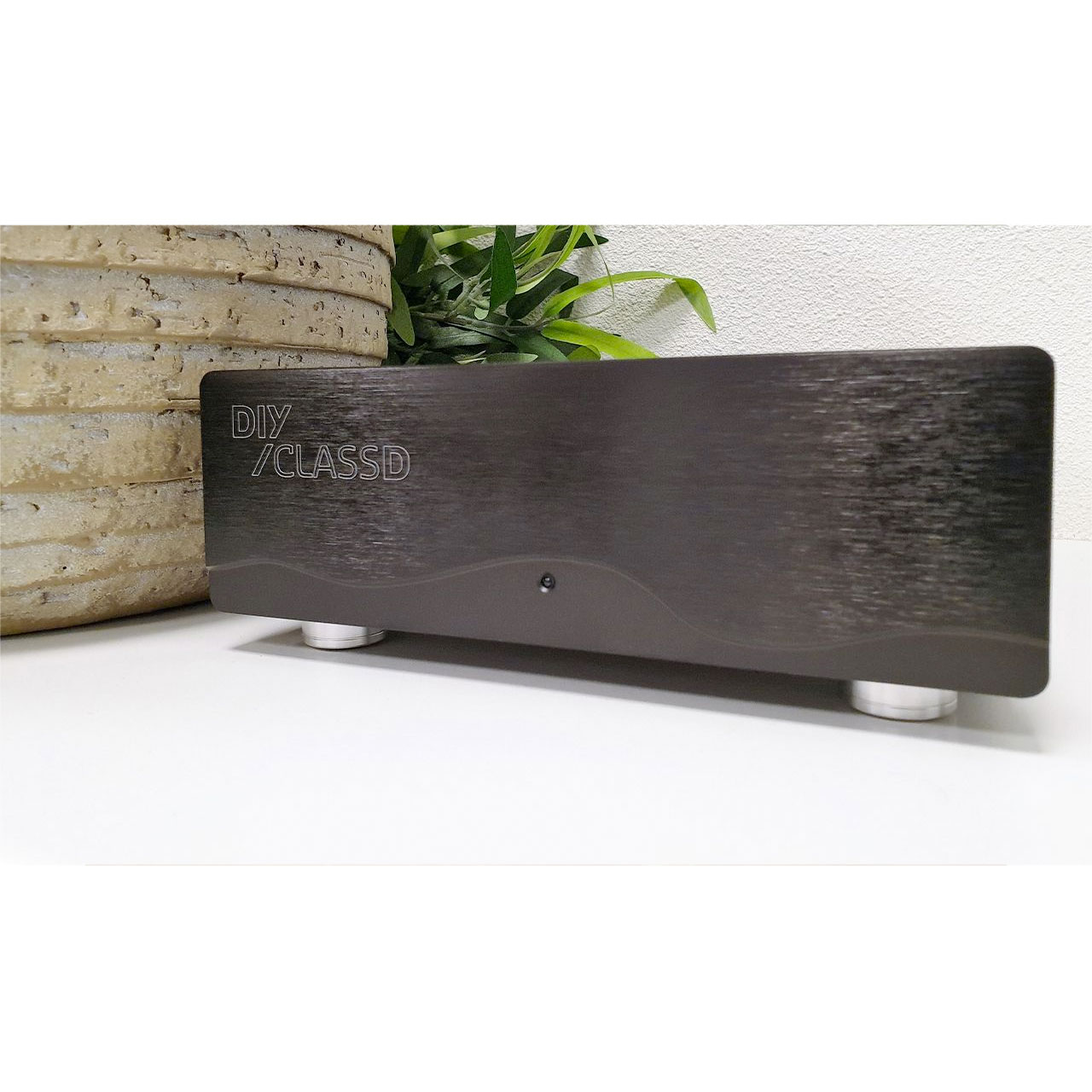

*** This product is discontinued *** The DIYclassD UcD700 mono kit is a powerful and easy way to get a high-end HiFi system in your living room at a very affordable price. The KIT is designed with an easy to use mindset. Everybody can build it and enjoy the sound in the shortest time possible. Everything is there 1pcs UcD700HG with HxR, SMPS1200A700, chassis, cables. You don't even need to solder, we did it for you.Internal size: 193mm(W) x 58mm(H) x 265mm(D)External size: 200mm(W) x 79mm(H) x 280mm(D) (size incl feet, excl connectors)THIS KIT CONTAINSComplete DIYclassD case1pcs UcD700HG with HxRSMPS1200A700Complete internal cable harnessAll required connectorsAll required mounting materialsComplete comprehensive manualNOT INCLUDED IN THE KITPower cableLoudspeaker cablesInterconnectsTools as described in the manual
